Injectune X1 and X4 are diesel test systems for common rail injector testing. Choose one or four channels with guided software, live delivery and return measurement, supported coding and printable test reports.
Diesel injector test systems
A diesel injector test system brings pressure control, injector actuation, measurement and software together. Injectune is built for common rail injector work: identify the application, run the appropriate test sequence, evaluate delivery and leak-off, then save a result your workshop can trace back to the injector.
01
Single-injector focus
04
Injector channels
3000 μs
Pulse control
±1 °C
Temperature tolerance
INJECTUNE / PRODUCT SYSTEM
Purpose-built common-rail injector testing, expressed at two capacities. The architecture stays consistent; the number of simultaneous channels changes.

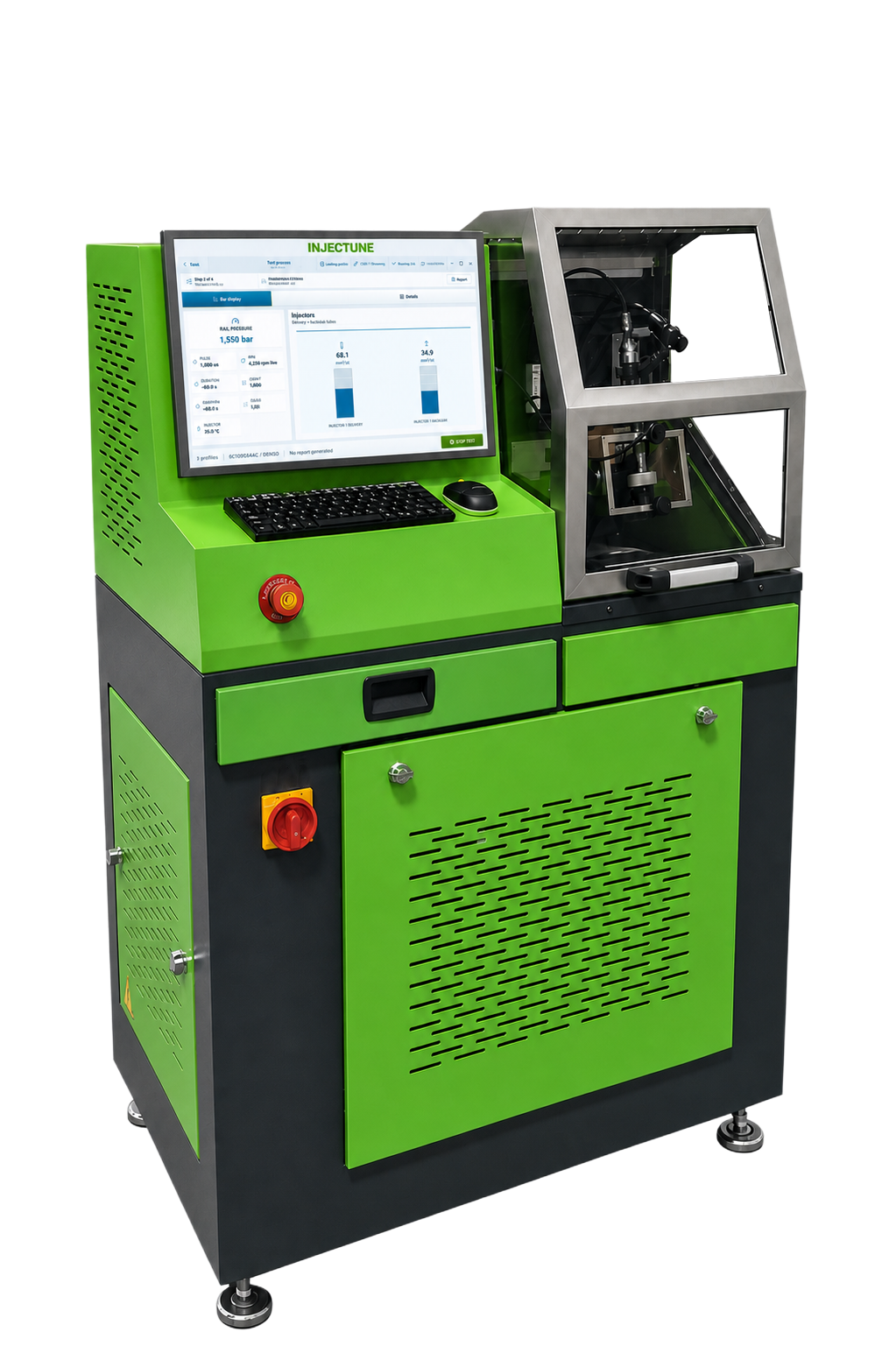

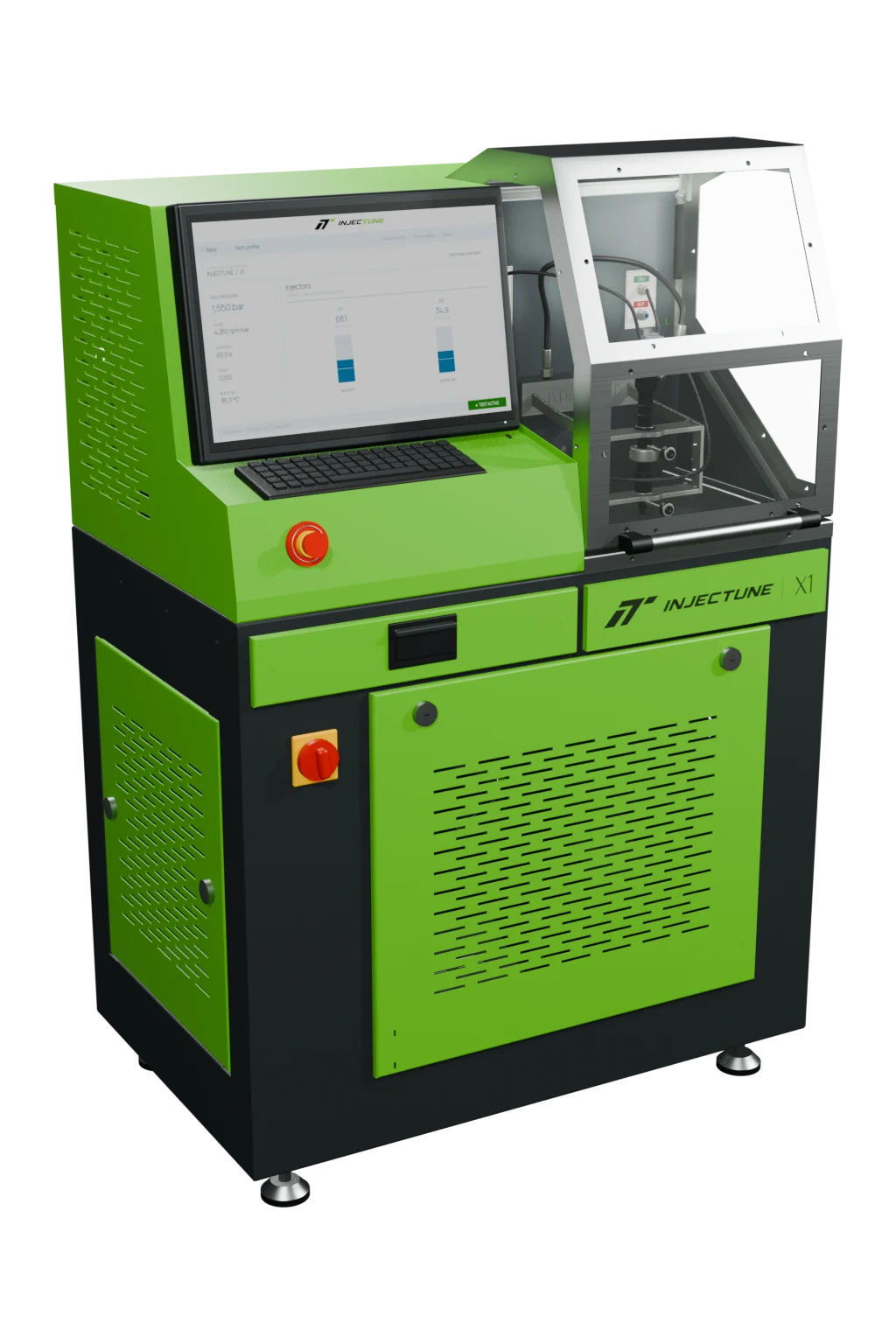

Injectune X1
01Complete focus
A dedicated common-rail test environment for focused injector work. X1 connects live measurement, guided test sequencing and a documented result in one deliberate operator flow.
Pulse duration
Up to 3,000 μs
Temperature stability
±1°C

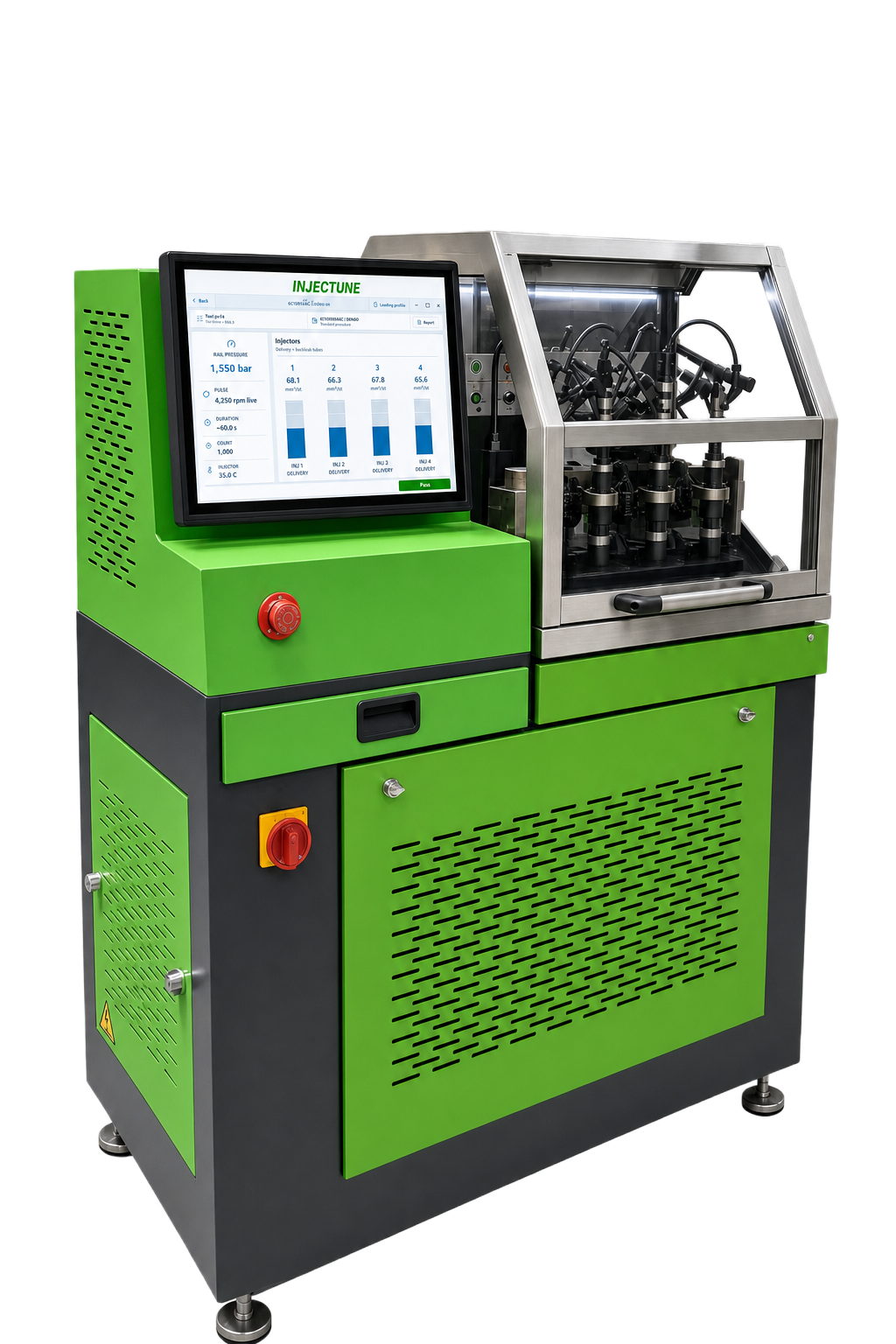

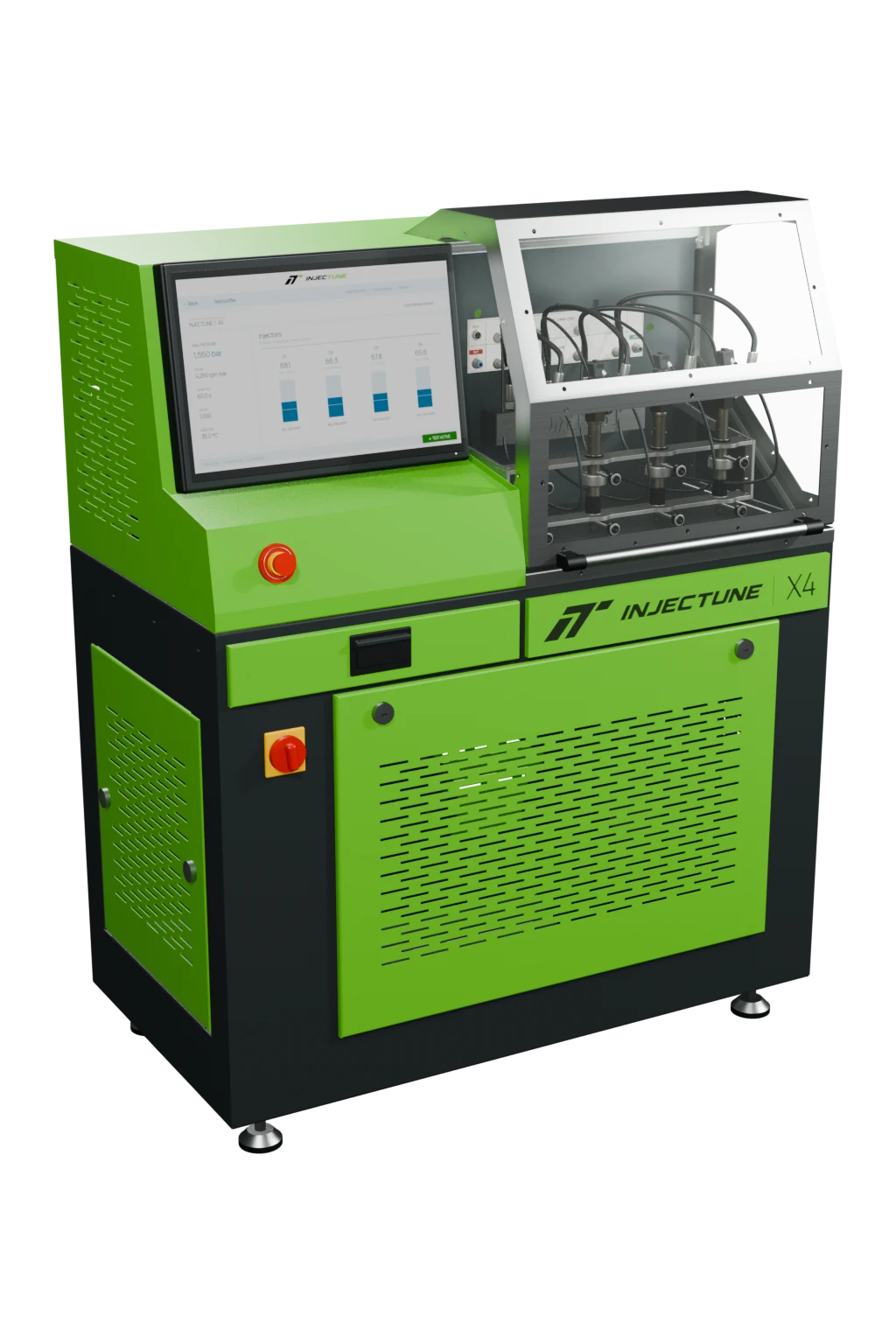

Injectune X4
04Structured comparison
X4 scales the same disciplined workflow across four injector positions. Channel-by-channel values, matching and test progress stay visible in a single operator environment.
Pulse duration
Up to 3,000 μs
Temperature stability
±1°C

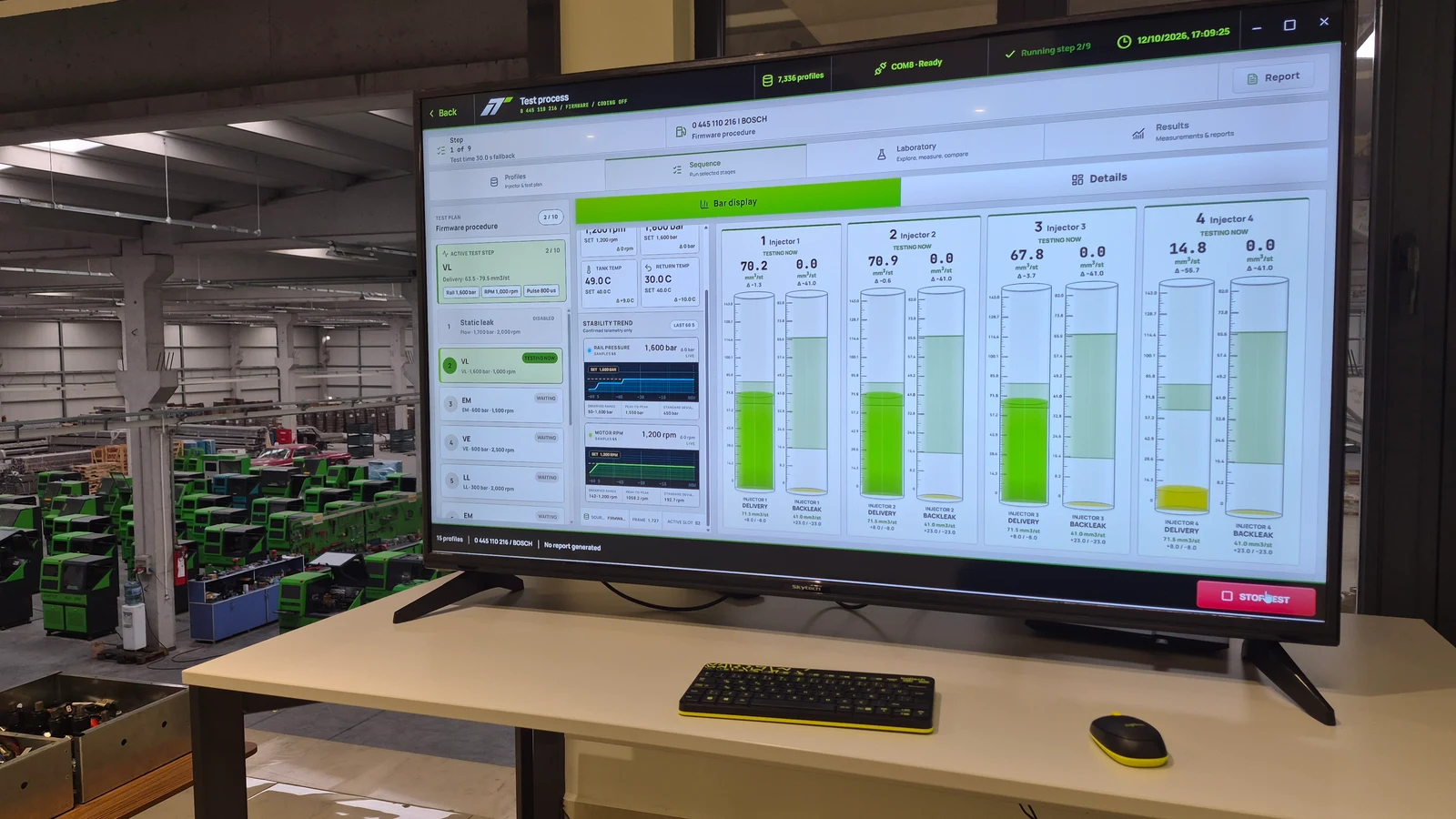

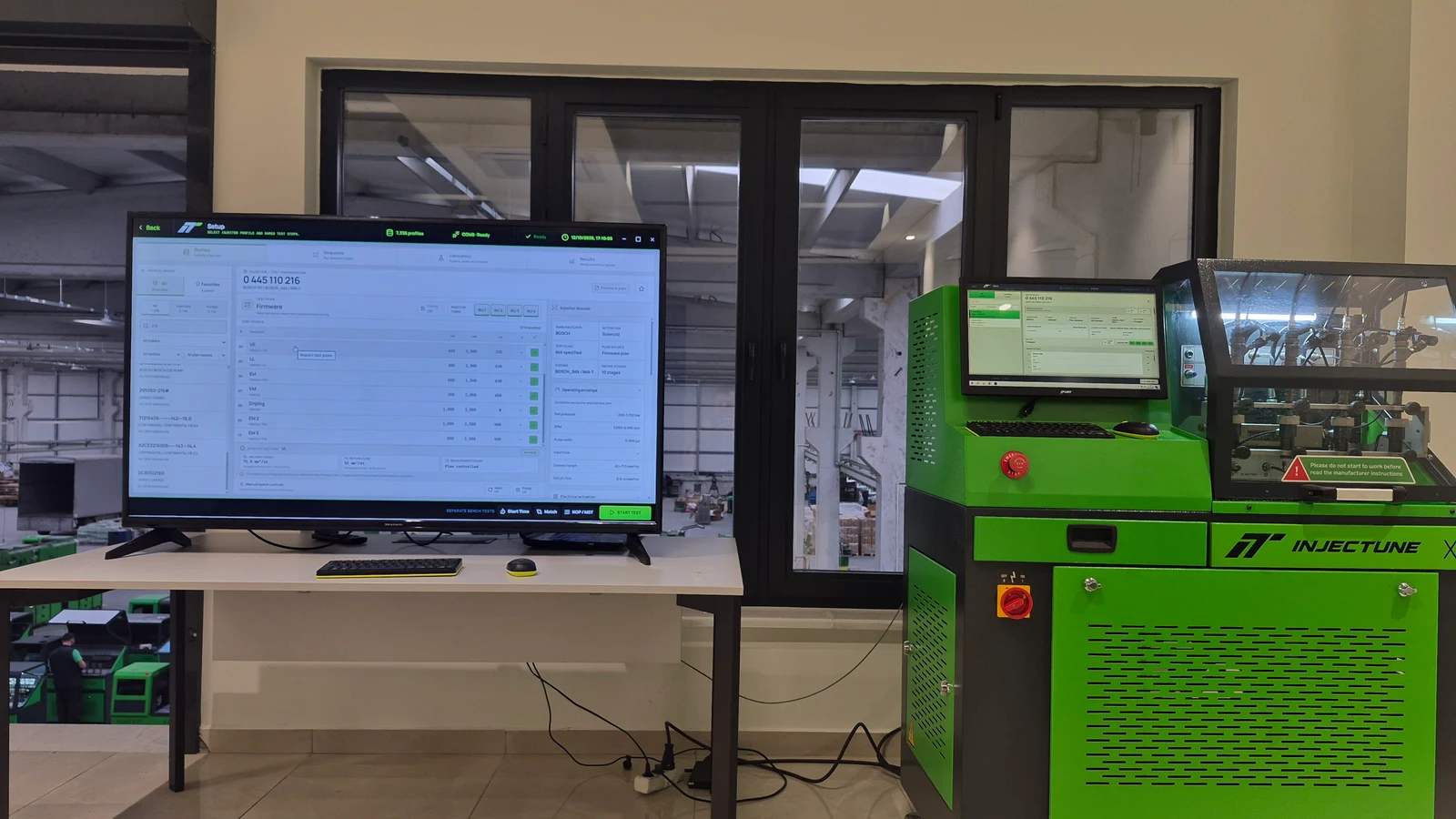

Select the correct injector profile, follow a guided test sequence and move from live delivery data to a documented result—without leaving the workstation.
DEMOInteractive demo view. This is not identical to the software installed on the machine. Measurements and results are simulated.
Interface shown for illustrative purposes. Available profiles, coding functions and routines depend on installed configuration.
Select · Test · Verify · Report
Why Injectune
Every capability is presented as a measurable technical condition and an operator outcome—not a vague promise.
Controlled pulse
Precisely managed electrical pulse timing throughout configured test sequences.
Temperature discipline
Controlled test-fluid temperature helps keep the operating condition visible and repeatable.
Visible measurement
Graphical presentation turns live values into a result the operator can interpret quickly.
Documented decisions
The completed workflow ends with a clear evaluation and a printable technical record.
Coding inside the workflow
Supported coding procedures live inside the same focused environment as measurement, evaluation and reporting.
Bosch
IMA · IMA/ISA
Delphi
C2i · C3i · C4i
Denso
QR
Continental / Siemens
IIC
Coding availability depends on injector type, installed database, software version and final system configuration. Brand names indicate application compatibility only.
From injector to answer
01
Search for the appropriate injector profile.
02
Review guided connections and test conditions.
03
Run an automatic sequence or take manual control.
04
Read live values, Start Time and Matching.
05
Confirm the outcome and print the protocol.
Truck, agricultural and industrial applications
Profiles, fixtures and accessories for these applications are selected together with the bench configuration. The final list is confirmed in the agreed configuration.
INJECTUNE / ORIGIN
A distinct product identity, supported by an established diesel test-bench manufacturer.
Injectune is a KOMTEST product, developed with the manufacturing discipline, application knowledge and support infrastructure behind an experienced diesel test-bench producer. Injectune remains the product experience; KOMTEST is the engineering foundation behind it.

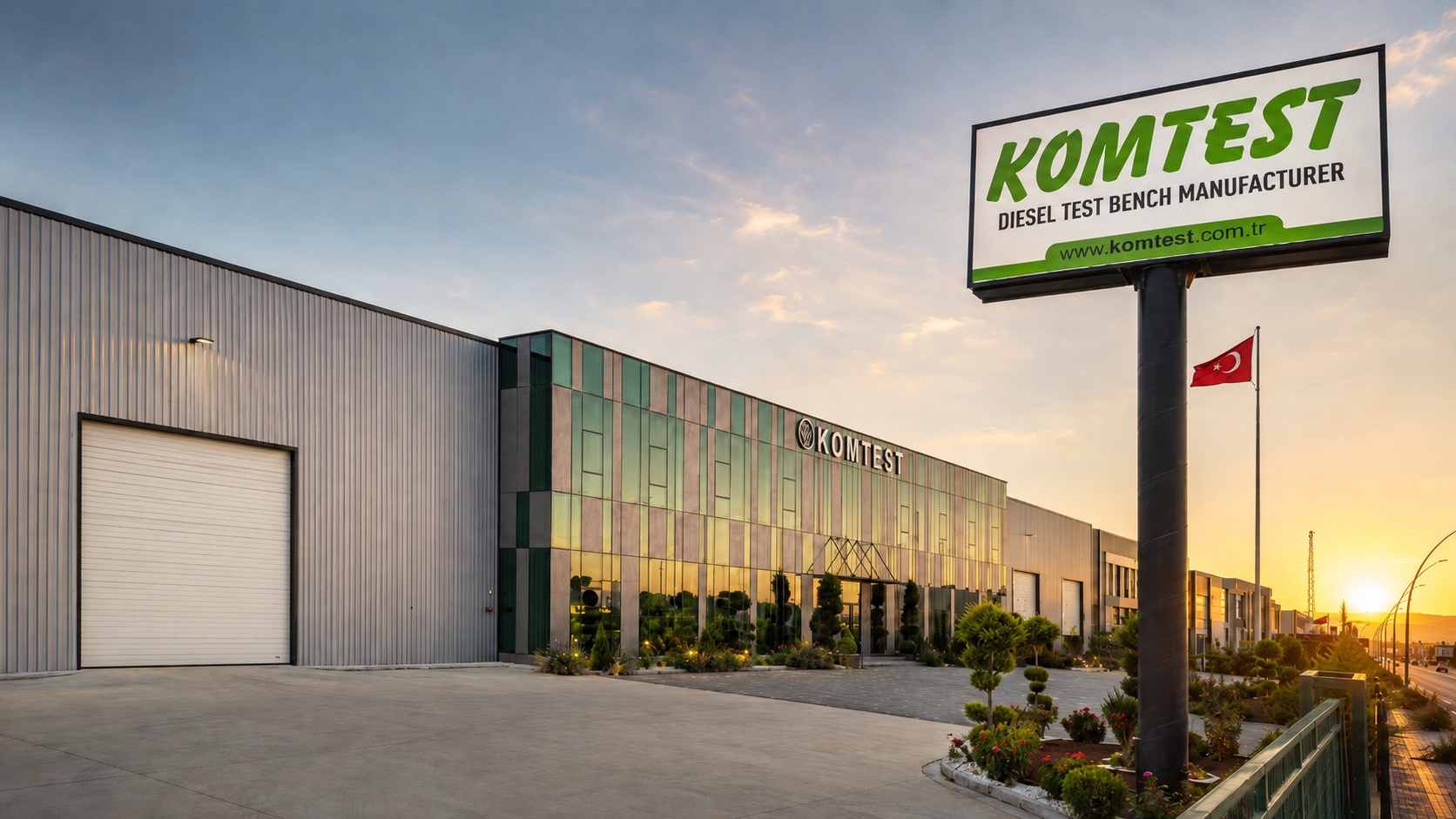

KONYA / TÜRKİYE
Manufacturer-direct engineering, configuration and support.

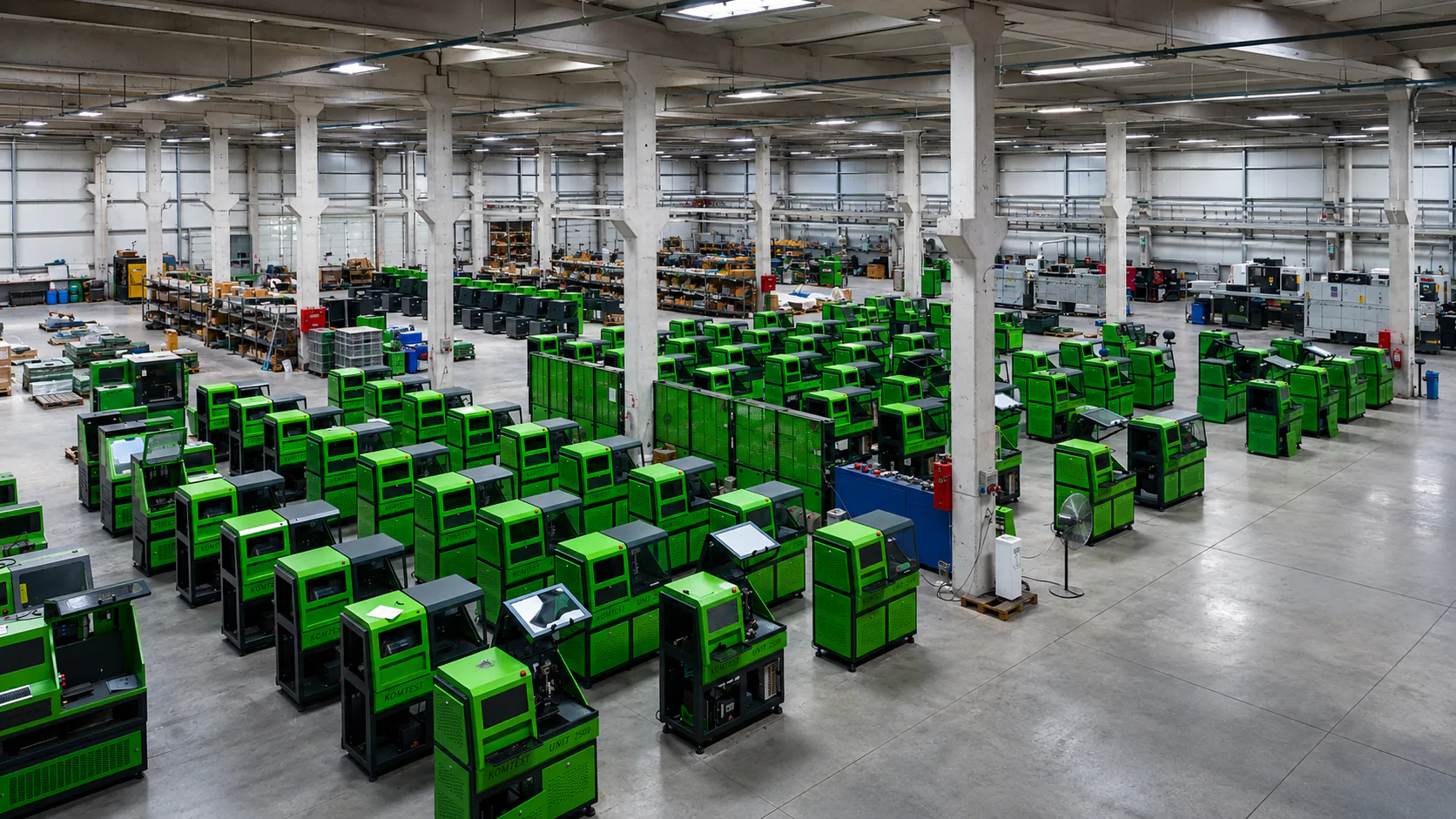

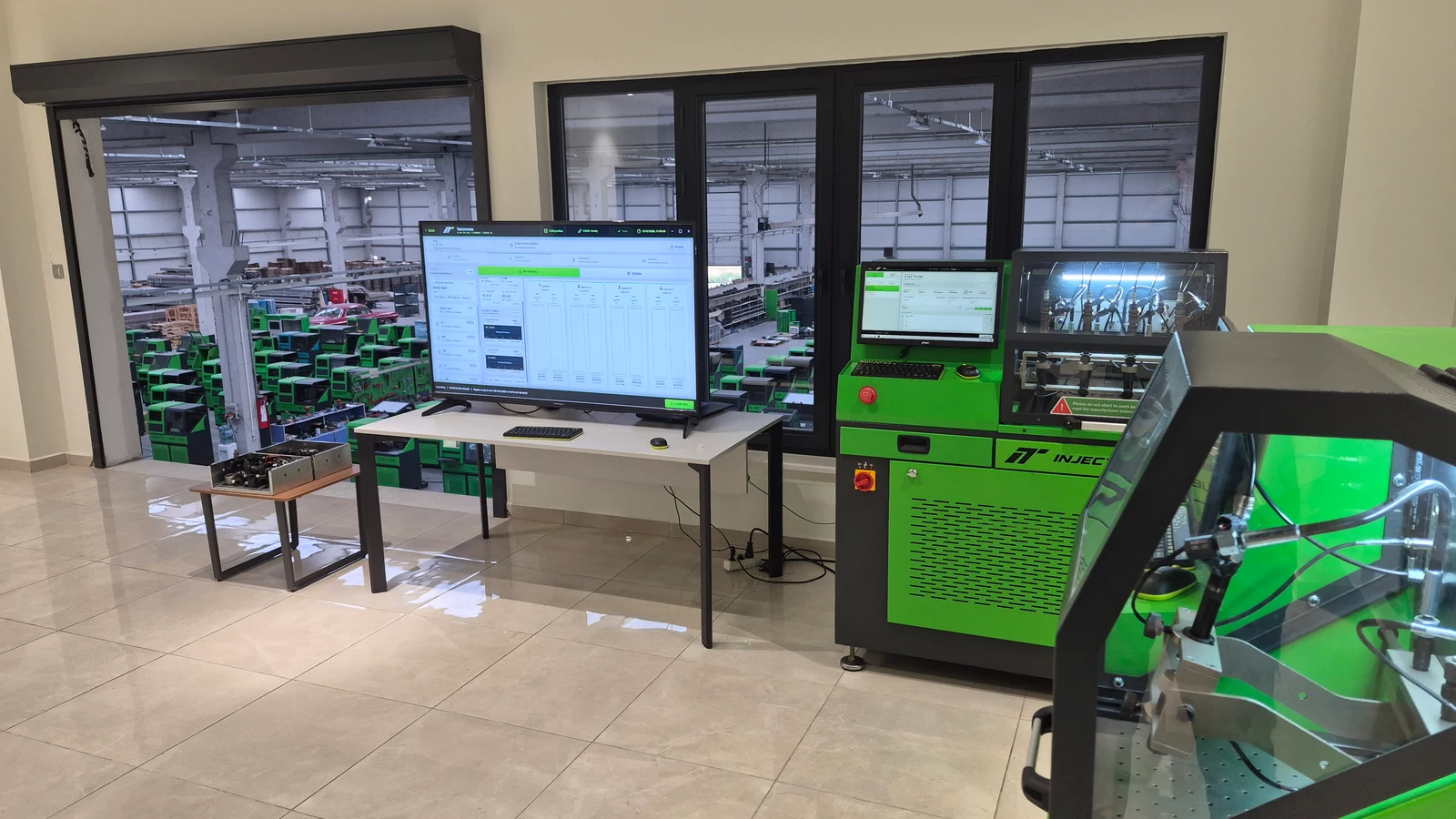

Inside KOMTEST manufacturing
Manufacturing foundation
Injectune X1 and X4 are developed and manufactured within KOMTEST's diesel test-bench engineering and production environment.
About the manufacturerWorkshop knowledge
Compare application coverage, complete job cycles, coding requirements and the equipment included in a quotation.
Read the guideUnderstand delivery, leak-off, pressure, pulse width and the test-plan context behind a measured result.
Read the guideDistinguish testing from calibration codes and review Bosch IMA, Delphi C2i / C3i, Denso QR and IIC workflows.
Read the guideArticles & News
Technical perspectives and stories from the people behind Injectune.
ArticlesDistinguish HVO from FAME, build a fuel history and separate controlled injector testing from fuel analysis with a practical diagnostic workflow.
Read story
ArticlesA detailed workshop process for ageing fleets: component identity, repair decisions, parts history, final testing, coding and vehicle verification.
Read story
ArticlesA practical diesel workshop guide to small injection quantities, temperature, return pressure, test-plan versions and repeatable injector measurements.
Read storyPlatform comparison
X1 prioritizes focused single-injector work. X4 is built for four-channel workflow and injector-set comparison.
Technical feature
Injectune X1
Injectune X4
Injector channels
1
4
Common rail pressure
200–2,500 bar
200–2,500 bar
Injector pulse control
Up to 3,000 μs
Up to 3,000 μs
Temperature tolerance
±1 °C
±1 °C
Automatic / manual testing
Included
Included
Graphical delivery / spill
Included
Included
S-Time response monitoring
Included
Included
Electronic injector pairing
Supported
Supported
Choose X1 when
Focused single-injector testing is the center of the operation.
Choose X4 when
Four-channel workflow and injector-set comparison define the operation.
Ready to move forward?
Share your injector applications, expected volume and preferred platform. We will help define the Injectune configuration that fits your operation.
Injectune technical sales · Global inquiries
Technical data describes the stated configuration and may evolve. Final specifications, database coverage, coding availability, accessories, fixtures and optional application support are defined in the approved commercial and technical configuration. Product visuals may show illustrative software interfaces.
