Injectune X1 · Single-channel common rail test benchOne injector. Complete attention.

Name: Injectune X1
Brand: Injectune

A single-channel diesel injector test bench for individual common rail injector diagnosis. Follow each connection, delivery and return measurement, supported coding routine and final report in one operator workflow.

Configure this platform View technical data

Equipment packages

Injectune X1 Interactive 3D

Injectune X1 single-channel common rail injector test bench with Injectune software active.

Preparing your X1Loading the CAD-based model

01: Injector channel
2,500: Maximum rail pressure / bar
3,000: Maximum pulse width / μs
±1 °C: Temperature tolerance

X width × Y height × Z depth

Machine dimensions: 0.952 × 1.350 × 0.622 m
Machine + pallet dimensions: 1.152 × 1.550 × 0.822 m

Machine + pallet adds 0.200 m to each overall dimension (X, Y and Z).

X1 / Product architecture

A clear operator workflow, from injector connection and measurement to a documented result.

Technical depth.
Sharper decisions.

Injectune X1 brings common rail injector testing and coding into a focused single-channel workstation. Guided setup, graphical delivery and spill measurement, application-specific routines and printable reports keep the operator connected to every result.

Pressure control

200–2,500 bar

Controlled common rail pressure across the configured injector test sequence.

Pulse control

Up to 3,000 μs

Precisely managed actuation for solenoid and piezo application workflows.

Thermal stability

±1 °C

Adjustable test-fluid temperature maintained within the stated tolerance.

Documented result

Save + print

Complete the workflow with a technical record of values and verdicts.

Injectune X1 3D model render. — Built in Konya / Türkiye
A distinct product. Backed by real manufacturing.

Guided control environment

From profile to protocol.

Testing stays inside one deliberate workflow: select the injector profile, verify connections, run the sequence, evaluate live values, complete coding where supported and document the outcome.

01Select an injector-specific profile
02Prepare the connection and test conditions
03Run automatic or manual test stages
04Evaluate delivery, spill and S-Time
05Code, match and print the result

Explore Injectune Software

Verified product data

Values below follow the corresponding KOMTEST technical platform: KOMTEST CRI 2100.

Every value.
In one place.

Injector channels: 1Dedicated single-injector workflow
Common rail pressure: 200–2,500 bar
Injector pulse control: Up to 3,000 μs
Test-fluid temperature: Adjustable, ±1 °C tolerance
Operation: Automatic and manual
Measurement: Graphical delivery and spill quantity
Response analysis: Real-time S-Time monitoring
Injector matching: Electronic pairing supported
Drive: Speed-controlled AC motor
Sensor control: EMPROP and DRV (507 type)
Control interface: PC, keyboard and mouse
Reporting: Save and print test reports
Machine dimensions: 0.952 × 1.350 × 0.622 mX width × Y height × Z depth
Machine + pallet dimensions: 1.152 × 1.550 × 0.822 mX width × Y height × Z depth. Machine + pallet adds 0.200 m to each overall dimension (X, Y and Z).

Measurement & control

Electronic air-gap measurement and matching support for solenoid injectors.
Graphical precision measurement of injection delivery and spill quantities.
Real-time S-Time monitoring of injector response.
Electronic injector pairing and matching workflow.
Automatic and manual test modes with injector-specific test plans.
PC-based control via keyboard and mouse.
Saveable and printable technical test reports.
Adjustable stroke control that can be cancelled at any stage.
EMPROP and DRV (507 type) sensor control support.

Coding systems

Bosch

IMA · IMA/ISA

Solenoid and piezo injector coding

Delphi

C2i · C3i · C4i

Application-dependent coding workflows

Denso

Solenoid and piezo injector coding

Continental / Siemens

IIC

Piezo injector coding

Configure your workshop

Your diesel lab.
Three equipment sets.

Choose the equipment scope that fits your workshop: Standard for the essential setup, Multi-Fit for more mounting and connector options, or Master Set for the complete listed optional range, including commercial-vehicle and machinery connections.

Choose your platform

For focused, one-injector testing.

INJECTUNE X1

Standard foundation

29 Standard equipment references

Standard adapter, coupling and cable set
Injectune Control and test reports
Supported injector coding functions

Configuration levels

Each configuration includes the previous level. Choose X1 or X4 separately for capacity.

Wider fixture & connector selection

Multi-Fit

Labs receiving a varied mix of injector designs

Standard plus eight mounting and fixture references, one 3-pin solenoid cable and one 6-pin solenoid cable.

Application fitment

Mixed injector fitments

Everything in

Standard

New in this level

+8Injector adapters & fixtures
+2Electrical connections

Keep more fixture and connector choices ready for the listed applications arriving at your lab.

Request a quote

Adds 8 mounting references and 2 cables. 10 optional references in total.

Optional equipment

10 / 25

Three equipment groups. A clear path to more fitment choices.

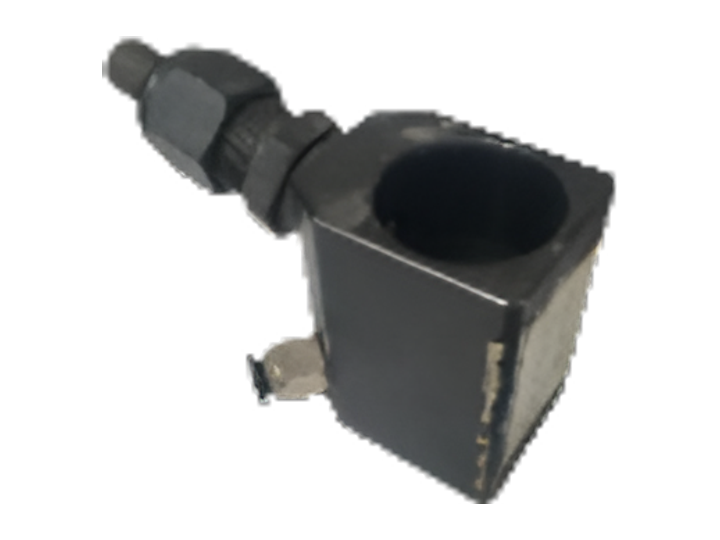

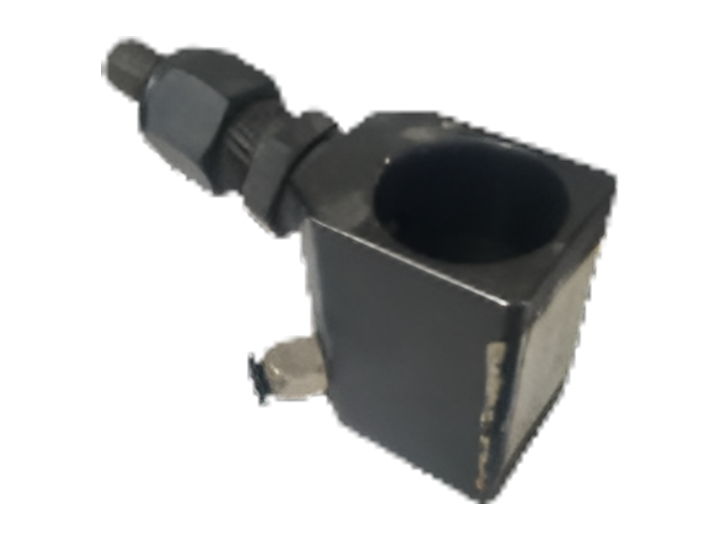

Injector adapters & fixtures

Application-specific components for the listed injector mounting or test connection arrangement.

Pressure connections

Couplings that connect the listed injector fuel inlet threads to the test bench.

No optional additions

Electrical connections

Cables that connect the listed injector electrical connectors to the test bench.

29 Standard equipment references + 10 Included optional references

View equipment10 references

Reference counts identify distinct catalogue items. Final quantities, exact injector fitment, test plans, electrical drive and coding support are confirmed for your agreed X1 or X4 configuration.

Adds
Injector Test Adapters & Fixtures
CE 320 — Injector Test Adapter
Example application0445120078
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Example injector part number
0445120078
This injector number is provided as an application example. Confirm the complete compatible range and required test connections for this adapter.
Example injector part number: 0445120078. This injector number is provided as an application example. Confirm the complete compatible range and required test connections for this adapter.
Adds
Injector Test Adapters & Fixtures
CE 330 — Injector Test Adapter
Example application0445120086
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Example injector part number
0445120086
This injector number is provided as an application example. Confirm the complete compatible range and required test connections for this adapter.
Example injector part number: 0445120086. This injector number is provided as an application example. Confirm the complete compatible range and required test connections for this adapter.
Adds
Injector Test Adapters & Fixtures
CE 372 — Injector Test Adapter
Application referenceDenso · Type 1
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Application reference
Denso · Type 1
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Denso · Type 1. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Adds
Injector Test Adapters & Fixtures
CE 378 — Injector Test Adapter
Application referenceDenso · Type 2
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Application reference
Denso · Type 2
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Denso · Type 2. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Adds
Injector Test Adapters & Fixtures
CE 382 — Injector Test Adapter
Application referenceDenso · Type 3
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Application reference
Denso · Type 3
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Denso · Type 3. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Adds
Injector Test Adapters & Fixtures
CE 390 — Multi-Application Injector Test Adapter — Type 1
Adapter listed for multiple injector setups. Confirm the injector geometry and required test connection arrangement for this variant.
Technical fitment details
Variant information
Injector fitment to confirm · Type 1
Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Variant information: Injector fitment to confirm · Type 1. Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Adds
Injector Test Adapters & Fixtures
CE 392 — Multi-Application Injector Test Adapter — Type 2
Adapter listed for multiple injector setups. Confirm the injector geometry and required test connection arrangement for this variant.
Technical fitment details
Variant information
Injector fitment to confirm · Type 2
Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Variant information: Injector fitment to confirm · Type 2. Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Adds
Injector Test Adapters & Fixtures
CE 394 — Multi-Application Injector Test Adapter — Type TA
Adapter listed for multiple injector setups. Confirm the injector geometry and required test connection arrangement for this variant.
Technical fitment details
Variant information
Injector fitment to confirm · Type TA
Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Variant information: Injector fitment to confirm · Type TA. Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Adds
Electrical Test Cables
ED 152 — 6-Pin Solenoid Injector Test Cable
Application referenceDenso · solenoid
Connects the listed injector application to the test bench drive channel. Match the injector connector geometry and documented pin assignment before selecting this cable.
Technical fitment details
Application reference
Denso · solenoid
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Denso · solenoid. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Adds
Electrical Test Cables
EB 148 — 3-Pin Solenoid Injector Test Cable
Application referenceBosch · solenoid
Connects the listed injector application to the test bench drive channel. Match the injector connector geometry and documented pin assignment before selecting this cable.
Technical fitment details
Application reference
Bosch · solenoid
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Bosch · solenoid. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.

See the technical equipment list

Compare contents

Compare contents
Equipment group
Standard equipment references	29	29	29
Injector adapters & fixtures	—	8	19
Pressure connections	—	—	1
Electrical connections	—	2	5
Included optional references	0	10	25

Need a specific application group?

Tell us the injector part numbers you service. We can build a focused configuration around those applications and confirm equipment quantities for X1 or X4.

Build a focused configuration

Reference counts identify distinct catalogue items. Final quantities, exact injector fitment, test plans, electrical drive and coding support are confirmed for your agreed X1 or X4 configuration.

Connection architecture

The supplied accessory family and application extensions follow the corresponding 2100 / 2300 technical configuration.

Ready as standard.
Expandable by application.

Included equipment family

15 core items

Injector connection adapters
Pressure test hose
Bosch injector cable
Delphi injector cable — Euro 4 / Euro 5
Denso injector cable
Continental / Siemens injector cable
Bosch piezo injector cable
Continental / Siemens piezo injector cable
Bosch piezo valve
Injector fork cable
DRV valve cable
Return back-leak hose and adapter
Injector return fixture
Injector opening tools
12 mm / 14 mm L coupling

CR injector reference set
