Choose a common rail diesel injector test bench for your workshop: the single-channel Injectune X1 or the four-channel X4. Both combine controlled rail pressure, delivery and return measurement, supported injector coding and printable reports in one guided software workflow.

Compare every technical value

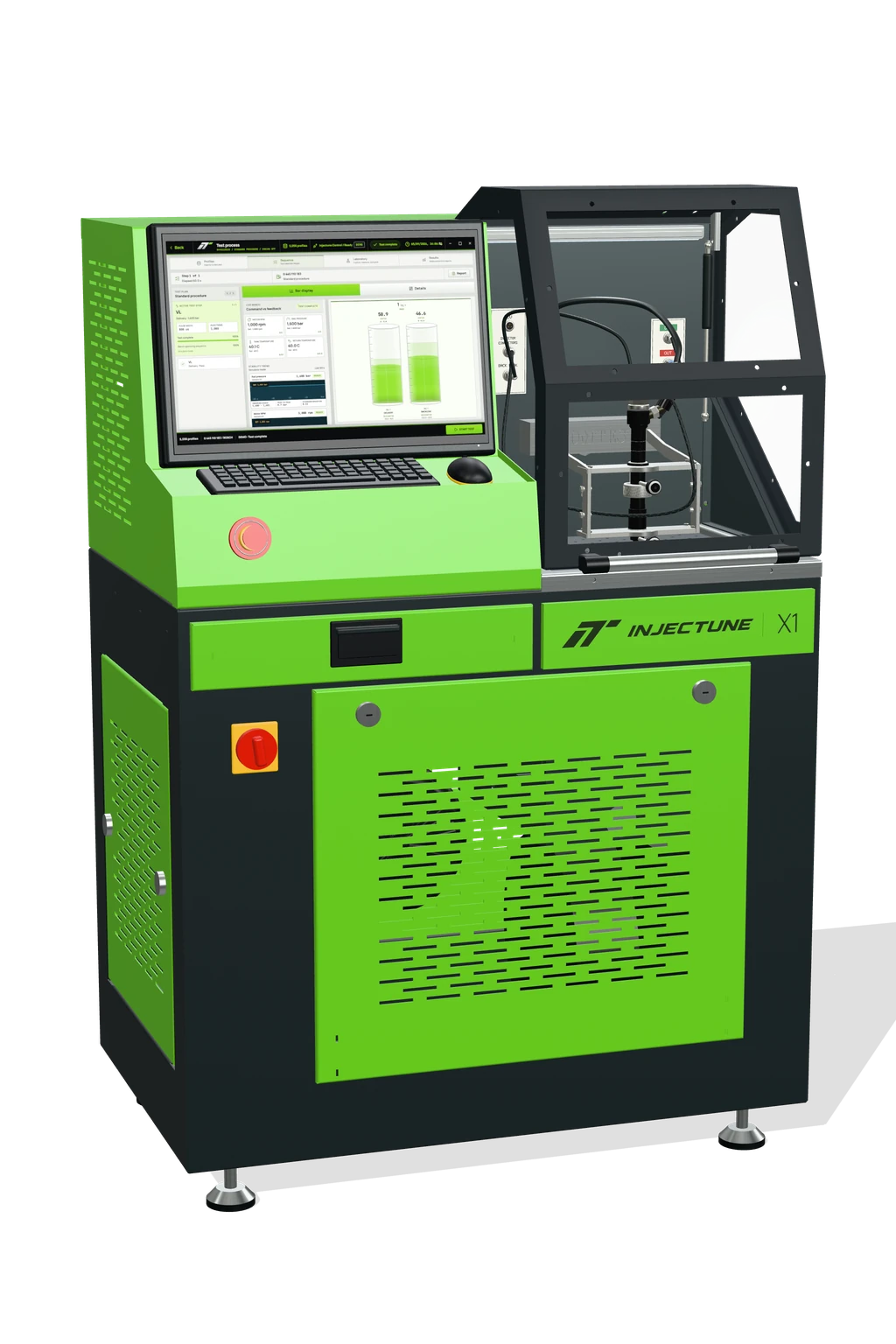

Injectune X1 Interactive 3D

Preparing your X1Loading the CAD-based model

Single-channel common rail test bench

One injector. Complete attention.

A single-channel diesel injector test bench for individual common rail injector diagnosis. Follow each connection, delivery and return measurement, supported coding routine and final report in one operator workflow.

Injector channel: 01
Rail pressure: 200–2,500 bar
Machine dimensions: 0.952 × 1.350 × 0.622 m
Machine + pallet dimensions: 1.152 × 1.550 × 0.822 m

X width × Y height × Z depth. Machine + pallet adds 0.200 m to each overall dimension (X, Y and Z).

Explore Injectune X1 Technical library

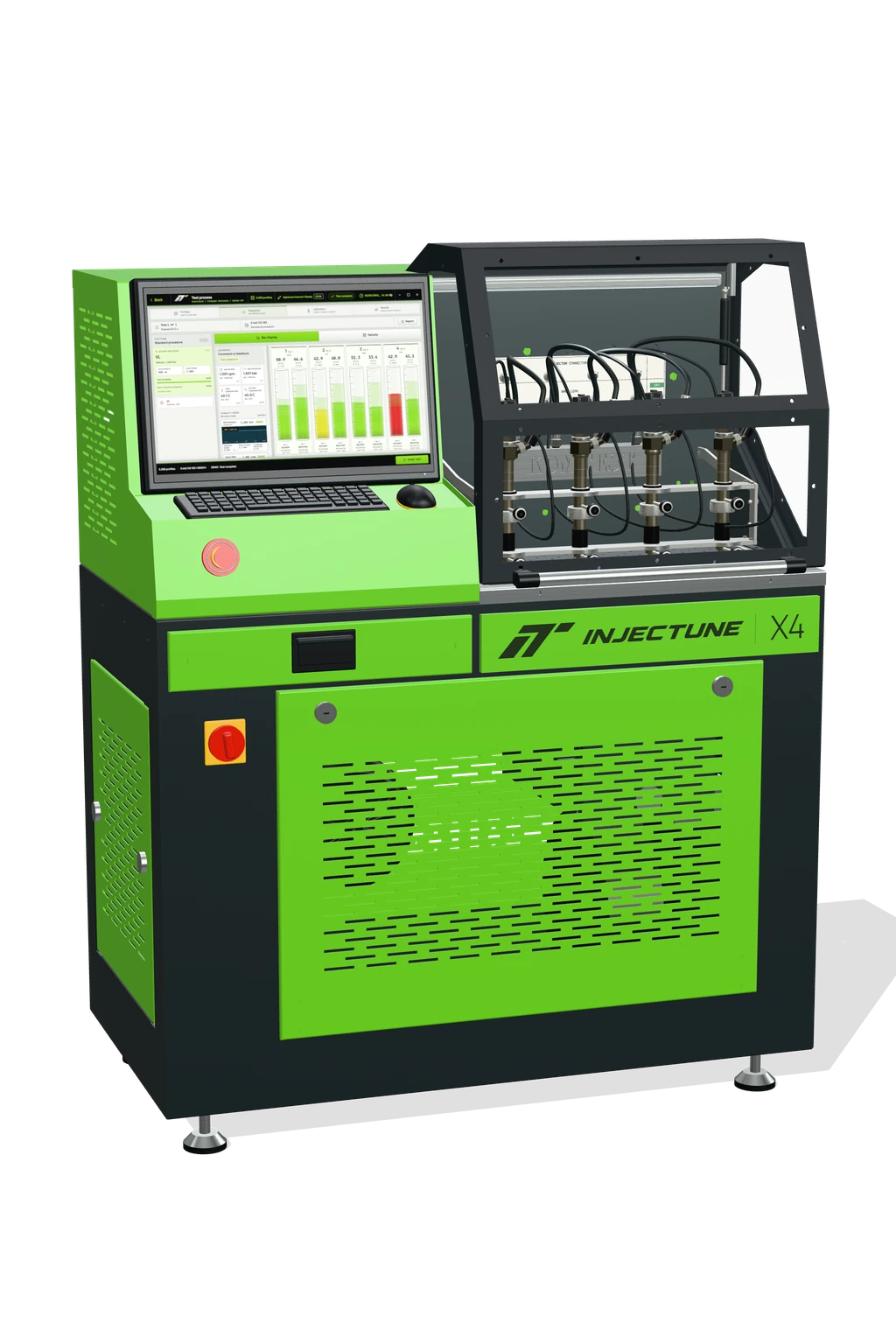

Injectune X4 Interactive 3D

Preparing your X4Loading the CAD-based model

Four-channel common rail test bench

Four channels. One decisive view.

A four-channel diesel injector test bench for common rail specialists working with injector sets. Compare channel-level measurements, use supported coding and matching routines, and document each result.

Injector channels: 04
Rail pressure: 200–2,500 bar
Machine dimensions: 1.122 × 1.350 × 0.622 m
Machine + pallet dimensions: 1.322 × 1.550 × 0.822 m

X width × Y height × Z depth. Machine + pallet adds 0.200 m to each overall dimension (X, Y and Z).

Explore Injectune X4 Technical library

Configure your workshop

Your diesel lab.
Three equipment sets.

Choose the equipment scope that fits your workshop: Standard for the essential setup, Multi-Fit for more mounting and connector options, or Master Set for the complete listed optional range, including commercial-vehicle and machinery connections.

Choose your platform

Choose X1 or X4 for testing capacity, then choose your equipment set. Final equipment quantities are confirmed for your machine.

Standard foundation

29 Standard equipment references

Standard adapter, coupling and cable set
Injectune Control and test reports
Supported injector coding functions

Configuration levels

Each configuration includes the previous level. Choose X1 or X4 separately for capacity.

Wider fixture & connector selection

Multi-Fit

Labs receiving a varied mix of injector designs

Standard plus eight mounting and fixture references, one 3-pin solenoid cable and one 6-pin solenoid cable.

Application fitment

Mixed injector fitments

Everything in

Standard

New in this level

+8Injector adapters & fixtures
+2Electrical connections

Keep more fixture and connector choices ready for the listed applications arriving at your lab.

Request a quote

Adds 8 mounting references and 2 cables. 10 optional references in total.

Optional equipment

10 / 25

Three equipment groups. A clear path to more fitment choices.

Injector adapters & fixtures

Application-specific components for the listed injector mounting or test connection arrangement.

Pressure connections

Couplings that connect the listed injector fuel inlet threads to the test bench.

No optional additions

Electrical connections

Cables that connect the listed injector electrical connectors to the test bench.

29 Standard equipment references + 10 Included optional references

View equipment10 references

Reference counts identify distinct catalogue items. Final quantities, exact injector fitment, test plans, electrical drive and coding support are confirmed for your agreed X1 or X4 configuration.

Adds
Injector Test Adapters & Fixtures
CE 320 — Injector Test Adapter
Example application0445120078
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Example injector part number
0445120078
This injector number is provided as an application example. Confirm the complete compatible range and required test connections for this adapter.
Example injector part number: 0445120078. This injector number is provided as an application example. Confirm the complete compatible range and required test connections for this adapter.
Adds
Injector Test Adapters & Fixtures
CE 330 — Injector Test Adapter
Example application0445120086
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Example injector part number
0445120086
This injector number is provided as an application example. Confirm the complete compatible range and required test connections for this adapter.
Example injector part number: 0445120086. This injector number is provided as an application example. Confirm the complete compatible range and required test connections for this adapter.
Adds
Injector Test Adapters & Fixtures
CE 372 — Injector Test Adapter
Application referenceDenso · Type 1
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Application reference
Denso · Type 1
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Denso · Type 1. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Adds
Injector Test Adapters & Fixtures
CE 378 — Injector Test Adapter
Application referenceDenso · Type 2
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Application reference
Denso · Type 2
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Denso · Type 2. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Adds
Injector Test Adapters & Fixtures
CE 382 — Injector Test Adapter
Application referenceDenso · Type 3
Provides the application-specific injector interface for the test bench. Select it by the complete injector part number and required test connection arrangement.
Technical fitment details
Application reference
Denso · Type 3
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Denso · Type 3. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Adds
Injector Test Adapters & Fixtures
CE 390 — Multi-Application Injector Test Adapter — Type 1
Adapter listed for multiple injector setups. Confirm the injector geometry and required test connection arrangement for this variant.
Technical fitment details
Variant information
Injector fitment to confirm · Type 1
Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Variant information: Injector fitment to confirm · Type 1. Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Adds
Injector Test Adapters & Fixtures
CE 392 — Multi-Application Injector Test Adapter — Type 2
Adapter listed for multiple injector setups. Confirm the injector geometry and required test connection arrangement for this variant.
Technical fitment details
Variant information
Injector fitment to confirm · Type 2
Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Variant information: Injector fitment to confirm · Type 2. Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Adds
Injector Test Adapters & Fixtures
CE 394 — Multi-Application Injector Test Adapter — Type TA
Adapter listed for multiple injector setups. Confirm the injector geometry and required test connection arrangement for this variant.
Technical fitment details
Variant information
Injector fitment to confirm · Type TA
Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Variant information: Injector fitment to confirm · Type TA. Confirm the injector fitment and required adapter or connector geometry when selecting this variant.
Adds
Electrical Test Cables
ED 152 — 6-Pin Solenoid Injector Test Cable
Application referenceDenso · solenoid
Connects the listed injector application to the test bench drive channel. Match the injector connector geometry and documented pin assignment before selecting this cable.
Technical fitment details
Application reference
Denso · solenoid
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Denso · solenoid. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Adds
Electrical Test Cables
EB 148 — 3-Pin Solenoid Injector Test Cable
Application referenceBosch · solenoid
Connects the listed injector application to the test bench drive channel. Match the injector connector geometry and documented pin assignment before selecting this cable.
Technical fitment details
Application reference
Bosch · solenoid
Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.
Application reference: Bosch · solenoid. Use this reference to identify the connection variant. Confirm the exact injector and required bench connections when selecting equipment.

See the technical equipment list

Compare contents

Compare contents
Equipment group
Standard equipment references	29	29	29
Injector adapters & fixtures	—	8	19
Pressure connections	—	—	1
Electrical connections	—	2	5
Included optional references	0	10	25

Need a specific application group?

Tell us the injector part numbers you service. We can build a focused configuration around those applications and confirm equipment quantities for X1 or X4.

Build a focused configuration

Reference counts identify distinct catalogue items. Final quantities, exact injector fitment, test plans, electrical drive and coding support are confirmed for your agreed X1 or X4 configuration.

Choose your equipment

Choosing a common rail test bench.

Start with the injectors your workshop receives. A useful diesel test bench configuration combines the correct hydraulic connections, electrical drive, injector-specific test plans and measurement functions. Pressure capacity and channel count are part of that decision; application coverage and the final report matter just as much.

Injectune X1 and X4 share a guided common rail test workflow. Identify the part number, prepare the connections and test conditions, run automatic or manual stages, then evaluate delivery, spill and response. Complete coding where supported and save or print the result.

Explore the injector test software

Individual injector workflow

Injectune X1 · One channel

Rail pressure range: 200–2,500 bar
Machine dimensions: 0.952 × 1.350 × 0.622 m
Machine + pallet dimensions: 1.152 × 1.550 × 0.822 m

X width × Y height × Z depth. Machine + pallet adds 0.200 m to each overall dimension (X, Y and Z).

Read X1 specifications and adapter sets

Injector-set workflow

Injectune X4 · Four channels

Rail pressure range: 200–2,500 bar
Machine dimensions: 1.122 × 1.350 × 0.622 m
Machine + pallet dimensions: 1.322 × 1.550 × 0.822 m

X width × Y height × Z depth. Machine + pallet adds 0.200 m to each overall dimension (X, Y and Z).

Read X4 specifications and adapter sets

Confirm coverage by injector part number

An injector brand alone is not a complete compatibility check. Confirm the family, actuation type, fixtures, electrical harness, installed test plan and any coding requirement together. The technical files distinguish standard equipment from application-dependent and optional connections.

Find your injector in the application database

Specify the complete workshop configuration

Bring sample part numbers, expected workload and coding needs to your enquiry. Review installation requirements, the supplied connection set, software scope, operator training and support terms. Both models are manufactured by KOMTEST in Konya, Türkiye; the final equipment and application scope are confirmed in your quotation.

Request a diesel injector test system configuration

Before you choose

Diesel test bench questions, answered.

What does a diesel injector test bench measure?

A common rail injector test bench operates an injector under the conditions of its selected test plan. Injectune displays injection delivery, return or spill quantity, and S-Time response measurements. Evaluate each result against the applicable plan, units and limits; maximum bench pressure alone does not define a valid test.

What is the difference between a diesel test bench and a common rail test bench?

Diesel test bench is a broad equipment category. A common rail test bench must be specified for the components it actually tests. Injectune X1 and X4 are common rail injector test benches; this range does not establish pump, EUI, EUP or HEUI testing coverage. Confirm the injector part number, connections and required routine before choosing a configuration.

Should I choose a single-channel or four-channel injector test system?

Choose X1 when individual injectors and single-piece workflow define your work. Consider X4 when injector sets, channel comparison and matching are regular requirements. Compare the complete job cycle, including preparation, testing, supported coding and reporting. Four channels do not automatically mean four times the completed work.

Which common rail injectors and coding systems are supported?

The published application range includes Bosch, Delphi, Denso and Continental / Siemens injector families, with standard and optional connection sets. Listed coding families include Bosch IMA / ISA, Delphi C2i / C3i / C4i, Denso QR and Continental / Siemens IIC. Exact testing and coding availability depends on the part number, adapters, installed database, software version and approved configuration.

Does a diesel injector test include generating a new code?

Testing and coding are separate functions. A test records measurements and an evaluation; a supported coding routine characterises the individual injector for its correction-code system. A printed test report does not prove that a new code was generated. Confirm both deliverables for the applications your workshop handles.

How do I choose a diesel test bench package and configuration?

Choose Standard, Multi-Fit or Master Set. Standard supplies the essential equipment. Multi-Fit includes Standard and adds eight mounting and fixture references plus 3-pin and 6-pin cables. Master Set includes Multi-Fit and all 25 current optional references, covering the listed commercial-vehicle and machinery connections, an M16 coupling and additional cables. Choose X1 or X4 separately for channel capacity. Send representative injector part numbers, daily workload, required coding families and the installation country so our team can confirm the equipment quantities, test plans, software scope and support terms.

Compare all X1 and X4 specifications

Workshop knowledge

Configuration review / Injectune platform

Build around
what you test.

Tell us your injector families, daily volume and required optional coverage. Technical sales will map the platform, fixtures and software scope to your workshop.

Start configuration review

Manufacturer-direct technical sales · Global inquiries
