01 / Product specification

Injectune X1

One injector. Complete attention.

Injectune X1 carries the complete technical architecture of the KOMTEST CRI 2100 into a sharper product experience. It tests and codes common rail injectors through a focused single-channel workstation with graphical measurement, application-specific routines and documented results.

Injector channels
1 Dedicated single-injector workflow
Common rail pressure
200–2,500 bar
Injector pulse control
Up to 3,000 μs
Test-fluid temperature
Adjustable, ±1 °C tolerance
Operation
Automatic and manual
Measurement
Graphical delivery and spill quantity
Response analysis
Real-time S-Time monitoring
Injector matching
Electronic pairing supported
Drive
Speed-controlled AC motor
Sensor control
EMPROP and DRV (507 type)
Control interface
PC, keyboard and mouse
Reporting
Save and print test reports
Dimensions (W × H × L)
125 × 150 × 75 cm

02 / Supplied equipment

Standard working set.

01Injector connection adapters
02Pressure test hose
03Bosch injector cable
04Delphi injector cable — Euro 4 / Euro 5
05Denso injector cable
06Continental / Siemens injector cable
07Bosch piezo injector cable
08Continental / Siemens piezo injector cable
09Bosch piezo valve
10Injector fork cable
11DRV valve cable
12Return back-leak hose and adapter
13Injector return fixture
14Injector opening tools
1512 mm / 14 mm L coupling

03 / Application coverage

Standard and optional fit.

Bosch 110 CRI

Standard

Bosch 120 CRIN

Optional

Delphi standard, piezo and Smart injectors

Application dependent

Denso solenoid and piezo injectors

Application dependent

Continental / Siemens piezo injectors

Application dependent

Cummins QSK / ISX / ISL / ISG

Optional

L'Orange injectors

Optional

CAT / Perkins C4.2–C9.3

Optional

04 / CR injector connection library

Codes and reference quantities follow the source CR Injector Standard & Optional Sets record.

29 standard.
25 optional.

Final supplied quantities and optional combinations are confirmed against the injector families and channel configuration in the approved quotation.

54 references shown

CE 306 — B / 0445 120 007standard

CE 306

B / 0445 120 007

#4

Reference quantity / 1

CE 308 — B / 0445 120 020standard

CE 308

B / 0445 120 020

#5

Reference quantity / 1

CE 310 — B / 0445 120 024standard

CE 310

B / 0445 120 024

#6

Reference quantity / 1

CE 312 — B / 0445 120 025standard

CE 312

B / 0445 120 025

#7

Reference quantity / 1

CE 314 — B / 0445 120 030standard

CE 314

B / 0445 120 030

#8

Reference quantity / 1

CE 316 — B / 0445 120 070standard

CE 316

B / 0445 120 070

#9

Reference quantity / 1

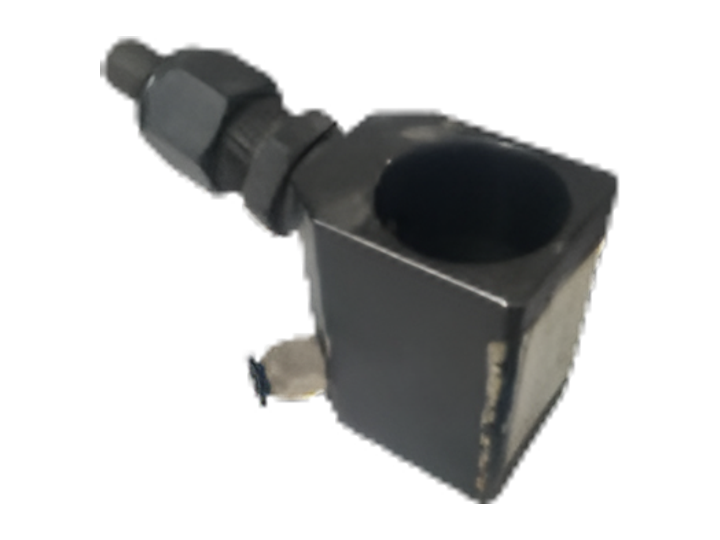

CE 318 — B / 0445 120 074standard

CE 318

B / 0445 120 074

#10

Reference quantity / 1

standard

EA 236

E.B.S.A.

#11

Reference quantity / 1

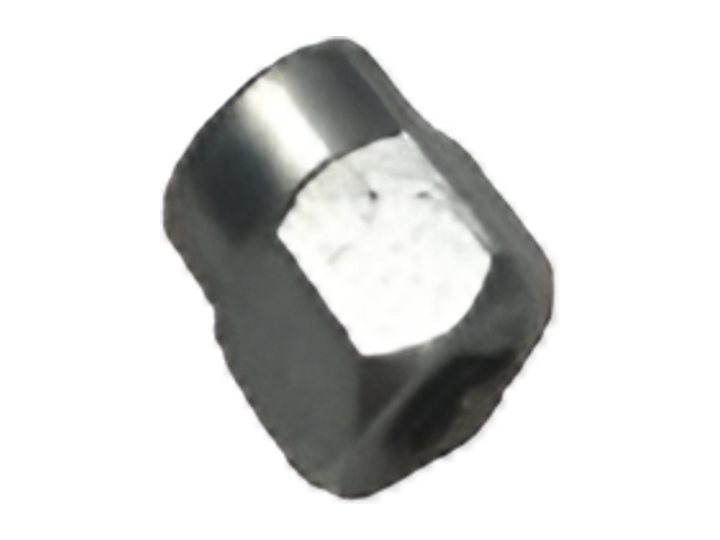

CR 432 — M14 rail T-piecestandard

CR 432

M14 rail T-piece

#12

Reference quantity / 4

CG 4-D — Denso 8 × 1 couplingstandard

CG 4-D

Denso 8 × 1 coupling

#14

Reference quantity / 4

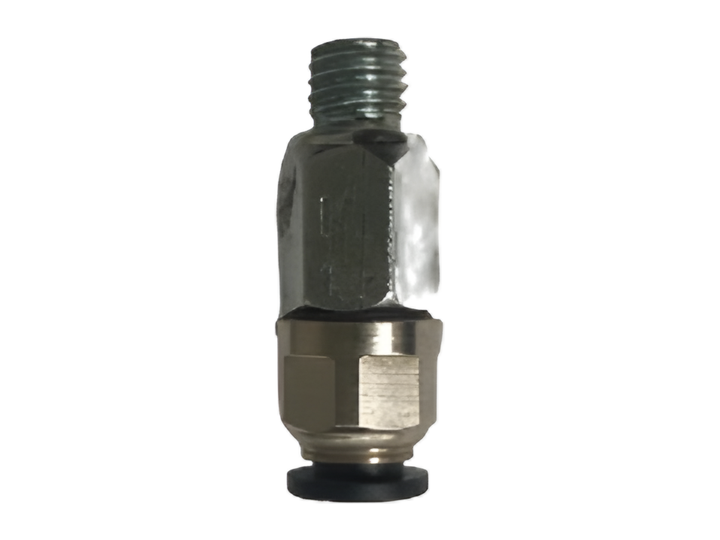

CG 6-D — Denso 8 × 1.25 couplingstandard

CG 6-D

Denso 8 × 1.25 coupling

#15

Reference quantity / 4

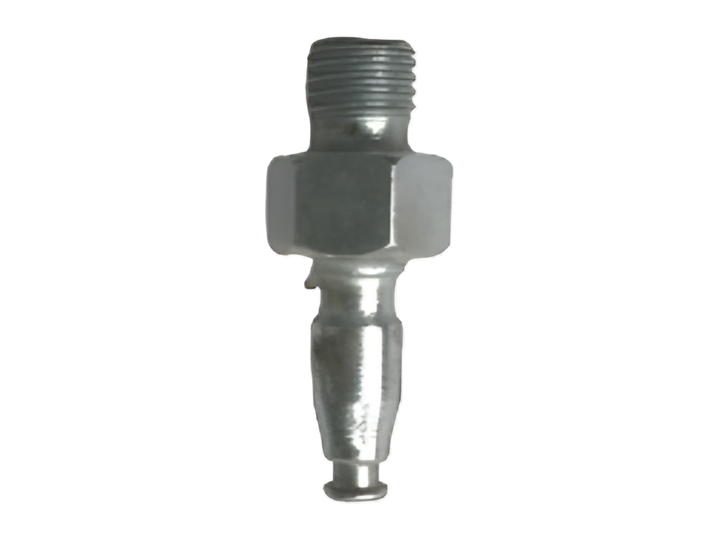

CG 8-D — Denso piezo 8 × 1 couplingstandard

CG 8-D

Denso piezo 8 × 1 coupling

#16

Reference quantity / 4

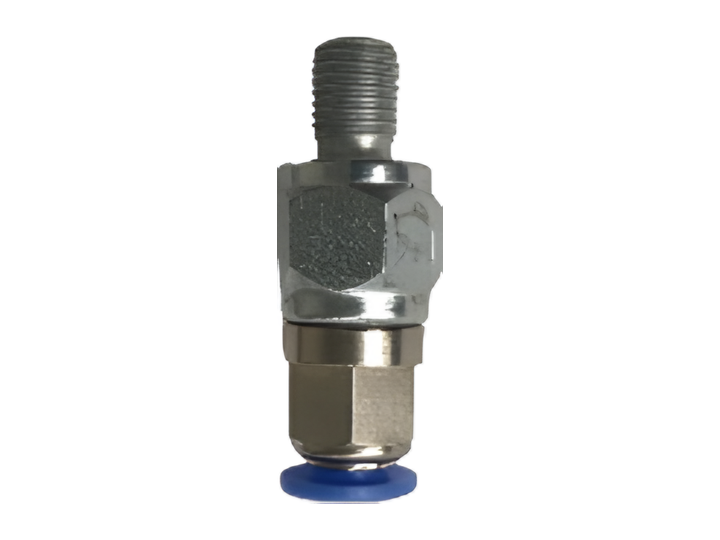

CG 10-D — Denso 6 × 1 couplingstandard

CG 10-D

Denso 6 × 1 coupling

#17

Reference quantity / 4

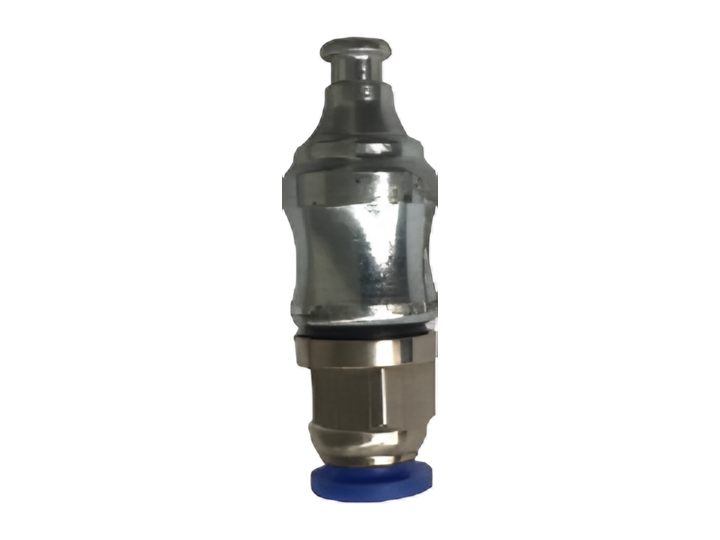

CG 12-D — Delphi couplingstandard

CG 12-D

Delphi coupling

#18

Reference quantity / 4

CG 14-B — Bosch couplingstandard

CG 14-B

Bosch coupling

#19

Reference quantity / 4

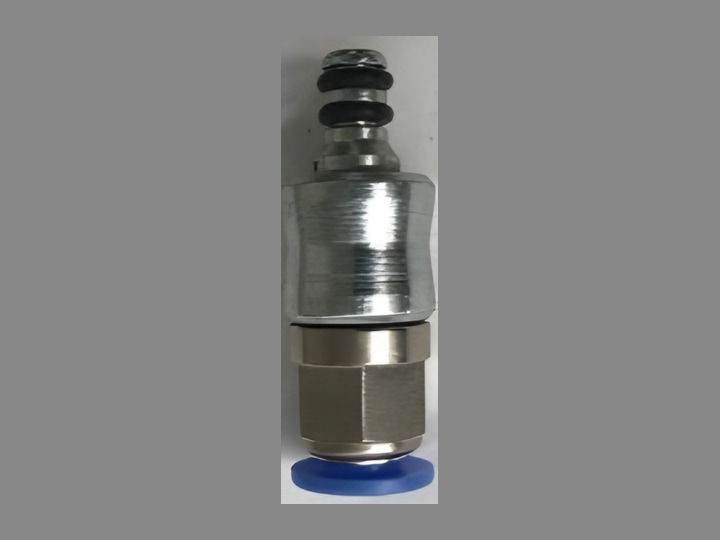

CG 16-S — Continental / Siemens couplingstandard

CG 16-S

Continental / Siemens coupling

#20

Reference quantity / 4

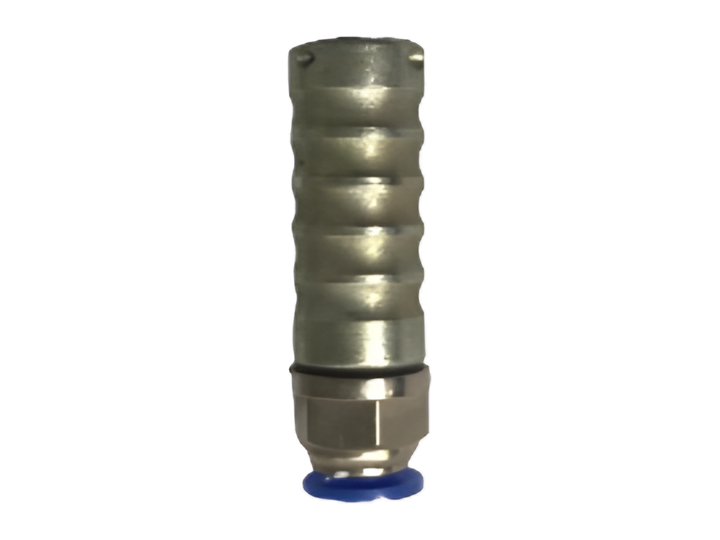

CG 18-P — Bosch / Denso piezo couplingstandard

CG 18-P

Bosch / Denso piezo coupling

#21

Reference quantity / 4

CRL 032 — M14 L couplingstandard

CRL 032

M14 L coupling

#23

Reference quantity / 4

CRL 032 — M12 L couplingstandard

CRL 032

M12 L coupling

#24

Reference quantity / 4

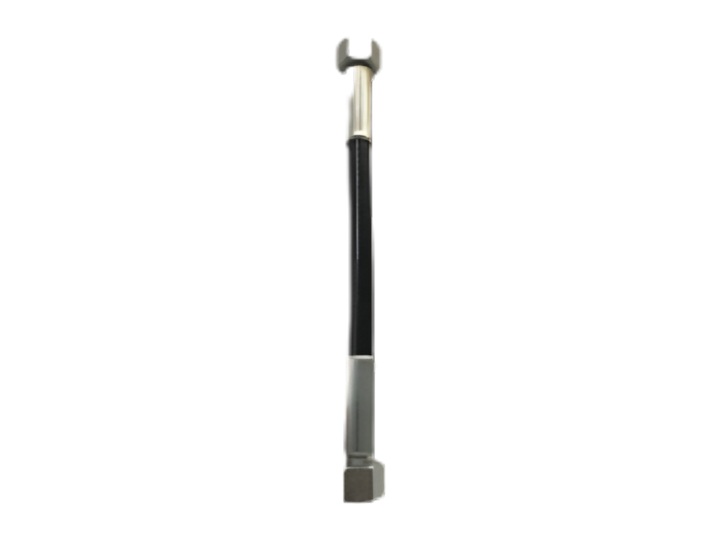

ERC 17 — E.B. 14 × 14 / 41 cm pressure linestandard

ERC 17

E.B. 14 × 14 / 41 cm pressure line

#25

Reference quantity / 4

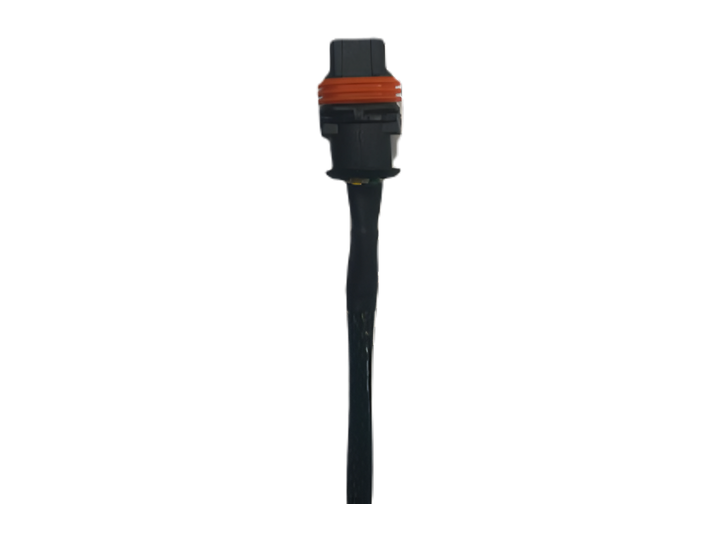

EB 102 — Universal injector cablestandard

EB 102

Universal injector cable

#36

Reference quantity / 4

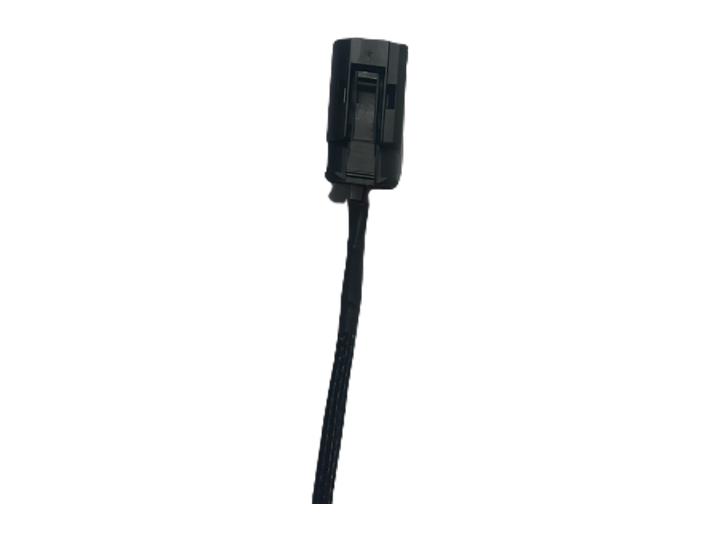

EB 104 — Bosch injector cablestandard

EB 104

Bosch injector cable

#37

Reference quantity / 4

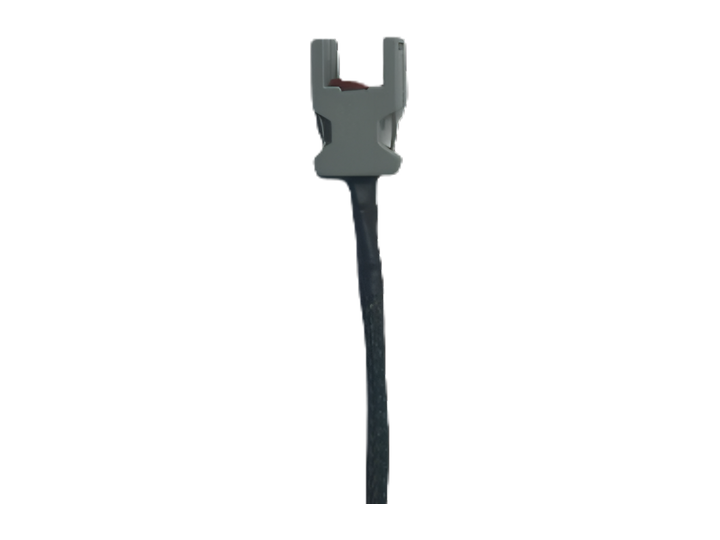

ED 110 — Delphi 1 injector cablestandard

ED 110

Delphi 1 injector cable

#38

Reference quantity / 4

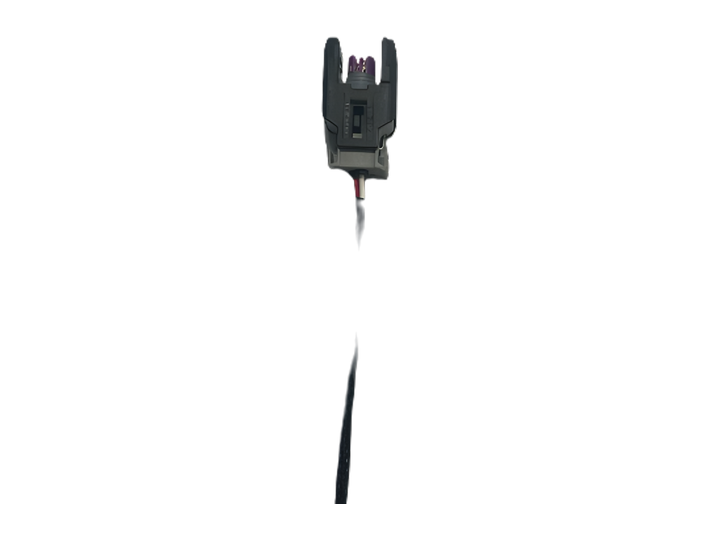

ED 112 — Delphi 2 injector cablestandard

ED 112

Delphi 2 injector cable

#39

Reference quantity / 4

ES 114 — Continental / Siemens injector cablestandard

ES 114

Continental / Siemens injector cable

#40

Reference quantity / 4

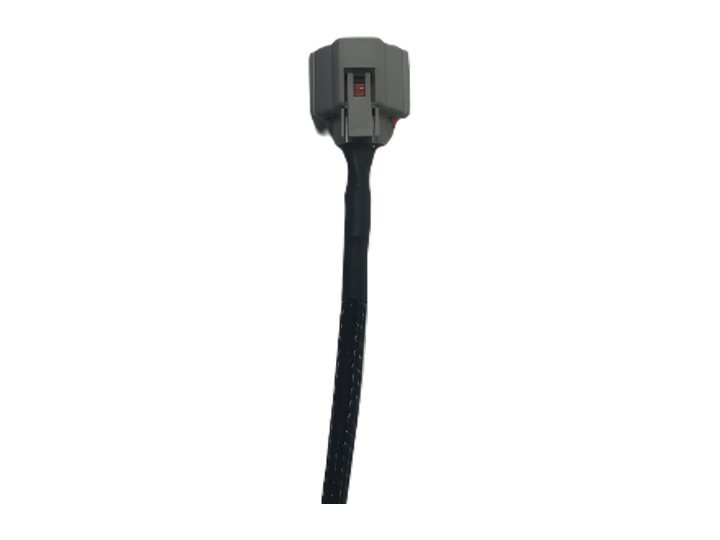

CD 116 — Denso 1 injector cablestandard

CD 116

Denso 1 injector cable

#41

Reference quantity / 4

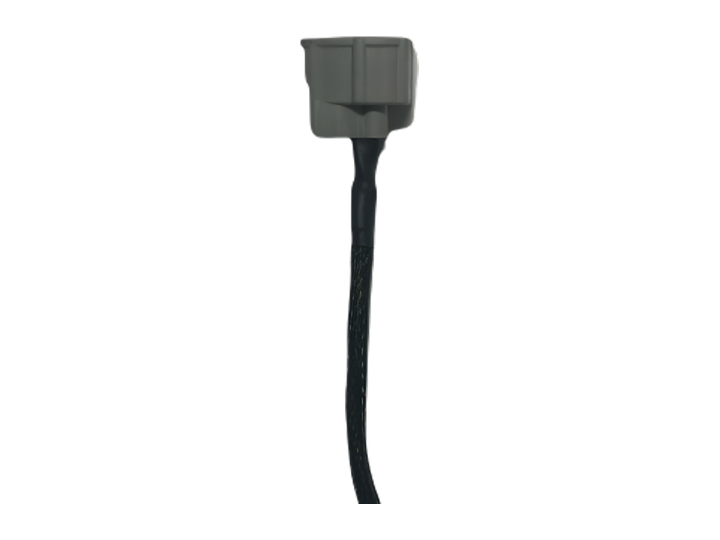

ED 118 — Denso 2 injector cablestandard

ED 118

Denso 2 injector cable

#42

Reference quantity / 4

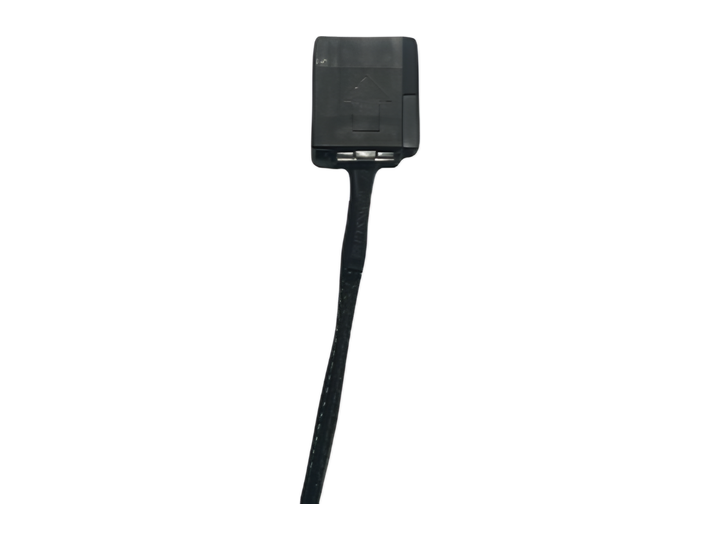

ED 120 — Denso 3 injector cablestandard

ED 120

Denso 3 injector cable

#43

Reference quantity / 4

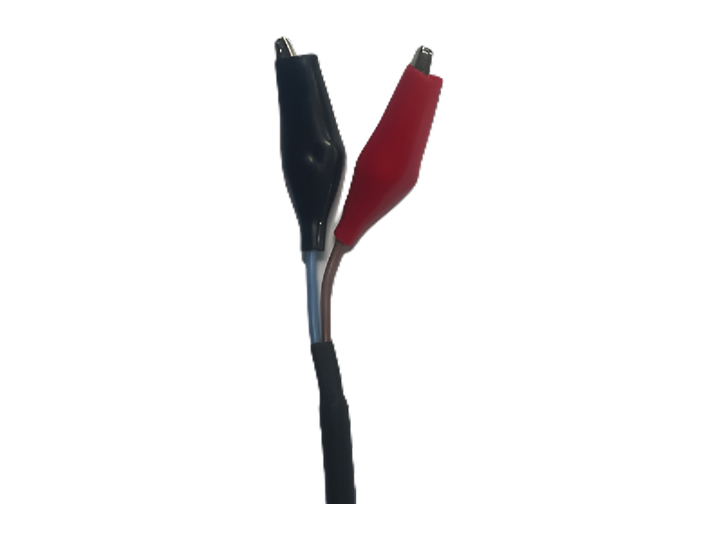

EU 122 — Universal injector cablestandard

EU 122

Universal injector cable

#44

Reference quantity / 4

CE 320 — B / 0445 120 078optional

CE 320

B / 0445 120 078

#49
CE 330 — B / 0445 120 086optional

CE 330

B / 0445 120 086

#50

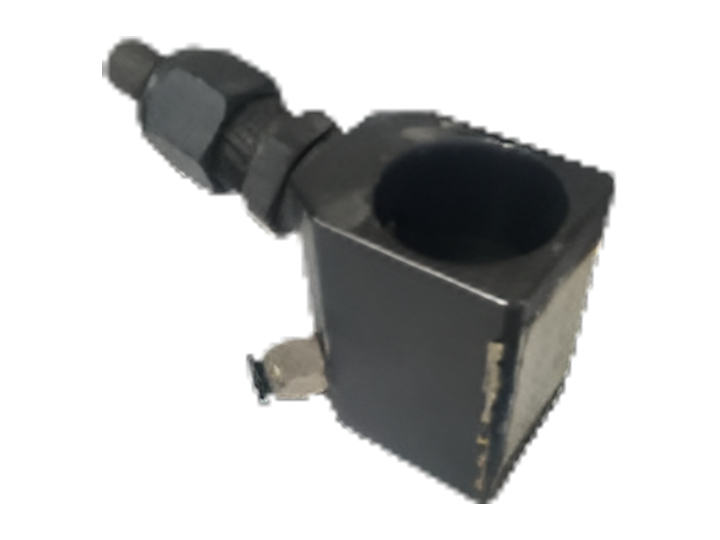

CE 334 — Bosch / John Deereoptional

CE 334

Bosch / John Deere

#51
CE 338 — Bosch / Volvooptional

CE 338

Bosch / Volvo

#52
CE 342 — Bosch / CAToptional

CE 342

Bosch / CAT

#53

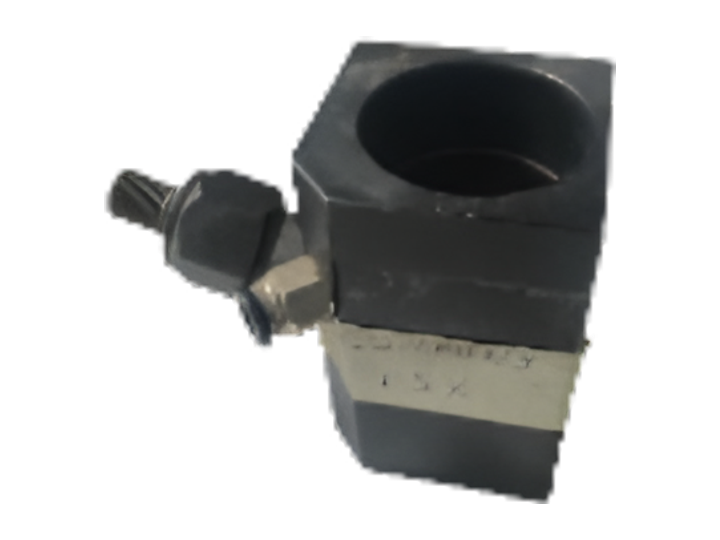

CE 344 — Bosch / Cummins ISXoptional

CE 344

Bosch / Cummins ISX

#54
CE 350 — Bosch / DAF Euro 5–6optional

CE 350

Bosch / DAF Euro 5–6

#55

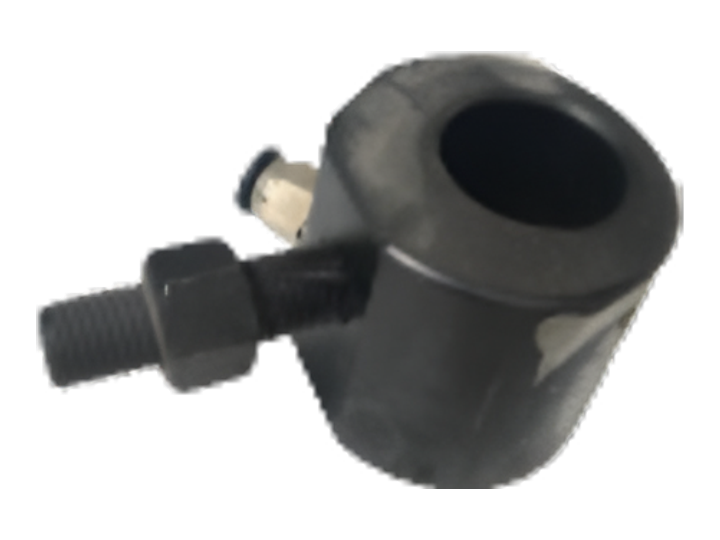

CE 354 — Bosch / DAF Euro 6optional

CE 354

Bosch / DAF Euro 6

#56
CE 358 — Bosch / Delphi Mercedes-Benz Euro 5optional

CE 358

Bosch / Delphi Mercedes-Benz Euro 5

#57

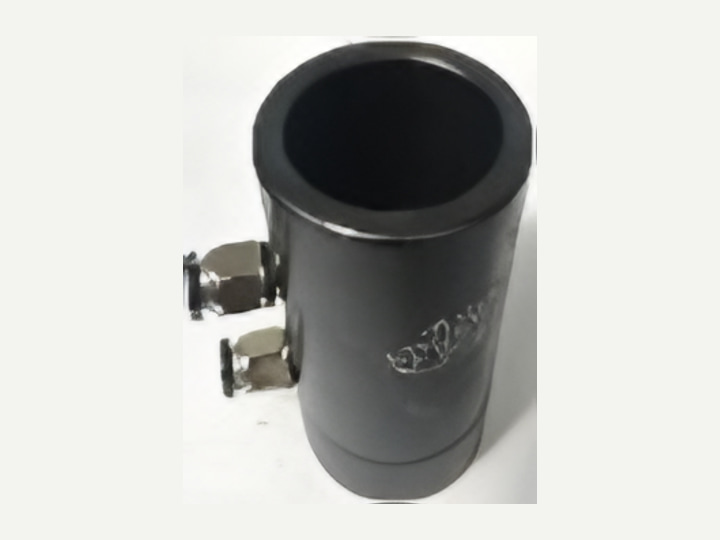

CE 364 — T / Bosch Mercedes-Benz Euro 6optional

CE 364

T / Bosch Mercedes-Benz Euro 6

#58
CE 366 — T / Delphi Volvo Euro 6optional

CE 366

T / Delphi Volvo Euro 6

#59
CE 368 — T / CAT Perkinsoptional

CE 368

T / CAT Perkins

#61
CE 372 — T / Denso 1optional

CE 372

T / Denso 1

#62

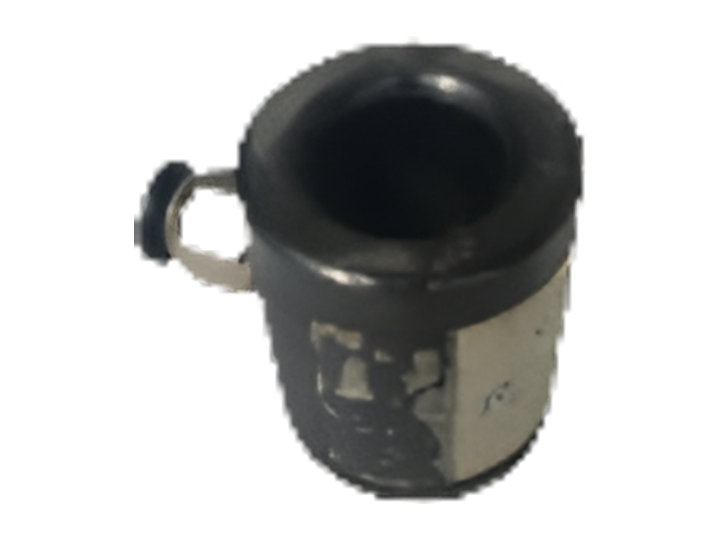

CE 378 — T / Denso 2optional

CE 378

T / Denso 2

#63
CE 382 — T / Denso 3optional

CE 382

T / Denso 3

#64
CE 384 — T / Mercedes-Benz Axor Euro 5optional

CE 384

T / Mercedes-Benz Axor Euro 5

#65
CE 390 — M / Universal 1optional

CE 390

M / Universal 1

#66

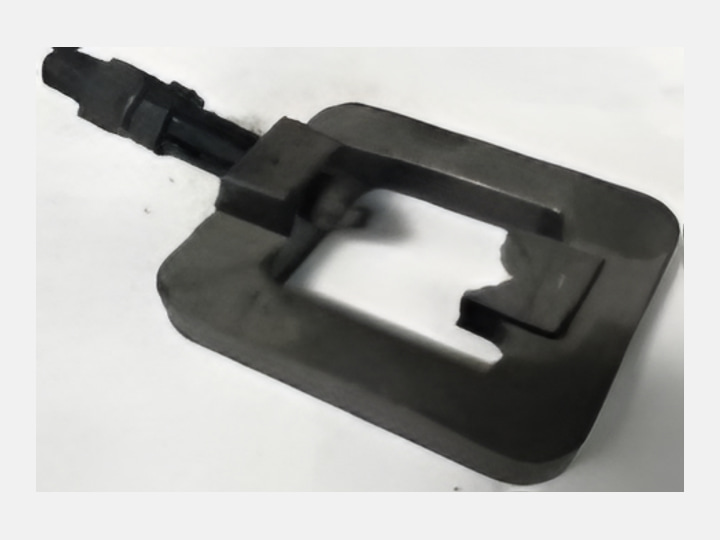

CE 392 — M / Universal 2optional

CE 392

M / Universal 2

#67

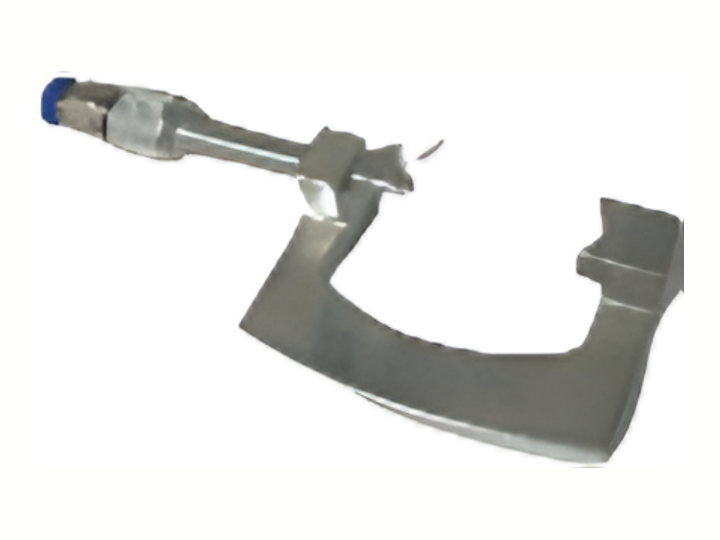

CE 394 — MT / Universal TAoptional

CE 394

MT / Universal TA

#68

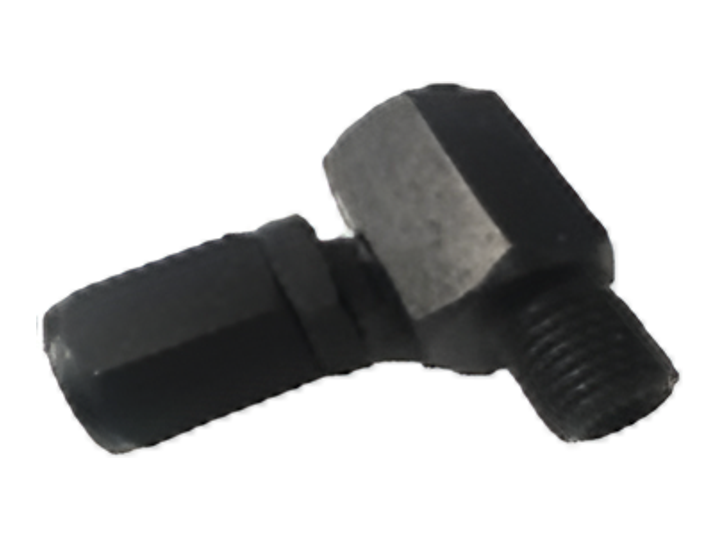

CRL 032 — M16 L couplingoptional

CRL 032

M16 L coupling

#69

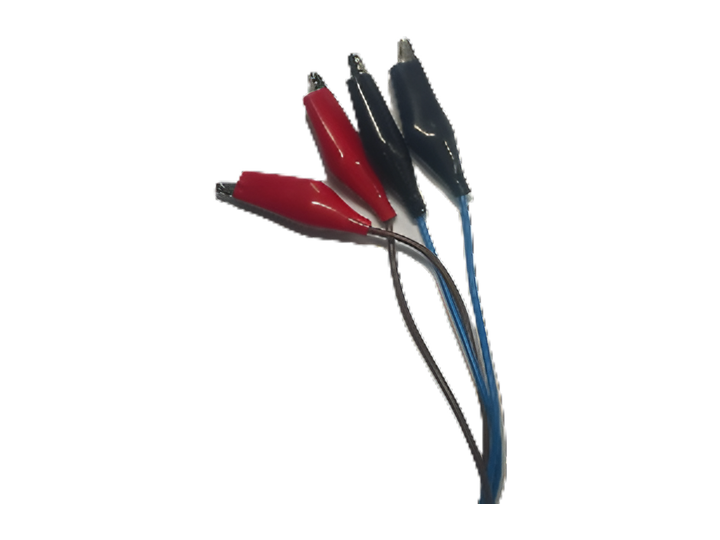

EB 106 — Bosch Euro 6 injector cableoptional

EB 106

Bosch Euro 6 injector cable

#70

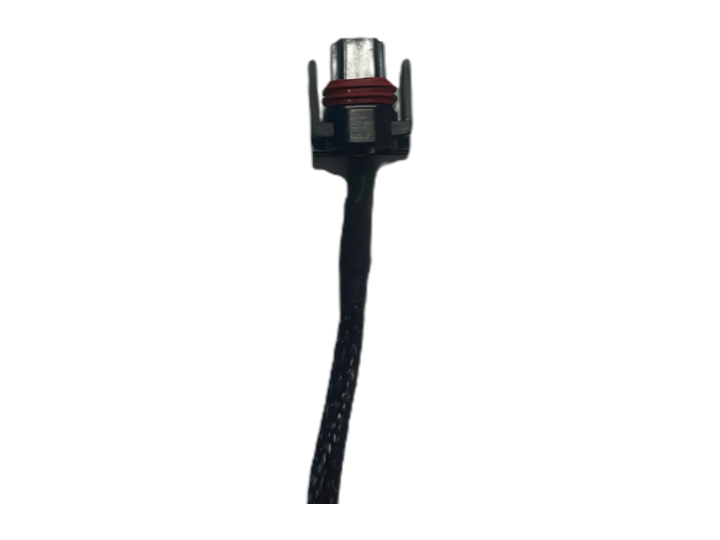

EC 108 — CAT injector cableoptional

EC 108

CAT injector cable

#71

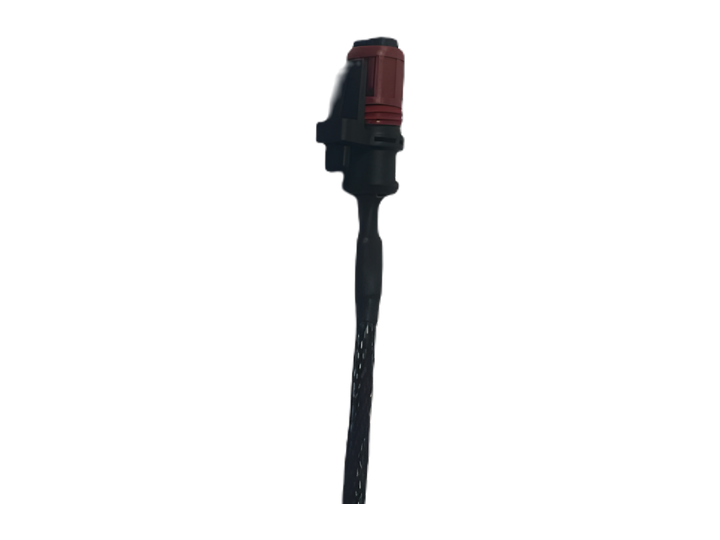

UV 168 — 2-pin Volvo Euro 6 cableoptional

UV 168

2-pin Volvo Euro 6 cable

#72
optional

ED 152

6-pin Denso solenoid cable

#73
optional

EB 148

3-pin Bosch solenoid cable

#74
